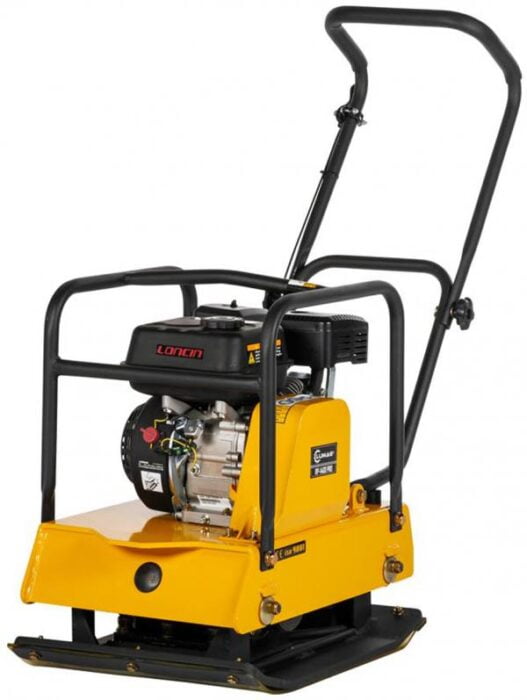

Lumag – RP 1400 PRO Forward Plate Compactor
View LargerSKU: RP1400PRO
POA
quipment features:
– This forward-running vibration plate with a very large base plate is particularly well suited for paving work, repair work in path construction, gardening and landscaping.
– The repositioning of the exciter enables a particularly fast feed with this model.
– Foldable handle – compact size for transport and storage.
–
Protective grille on the exhaust, handle dampened against vibrations – Equipped with V-belts protected on all sides, protective frame, rubber mat and transport undercarriage.
Any questions? Need assistance? Call our helpline on 01603 756128
Product Details
| Motor / drive | 1-cylinder 4-stroke OHV engine |
| Motor power P1 / P2 | 4.8 / 4.1 kW at 3,000 rpm |
| Fuel tank | 3.6 l |
| Engine oil | 0.6 l |
| Plate length | 585 mm |
| Plate width | 450 mm |
| frequency | 70 Hz |
| Centrifugal force | 20 kN |
| Area performance | 540 m² / hour |
| Max. Feed | 20 - 24 m / min. |
| Vibration shocks | 4,200 vpm |
| Compaction depth | 30 cm |
| Max. Permissible inclination of the motor | 20 ° |
| Sound power level LWA | 108 dB (A) |
| Operating weight | approx. 126 kg |
| Transport weight (net / gross) | approx. 130/140 kg |
| Packaging dimensions (LxWxH) | 680 x 480 x 665 (755) mm |
