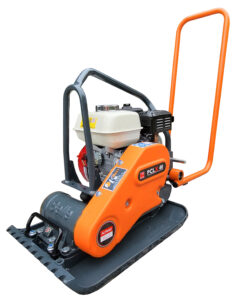

Altrad Belle – PCLX 40 Honda Engine – Plate Compactor
View Larger
SKU: LC4071
£1,034.99 inc VAT/£862.49 ex VAT
Professional compaction plates with low Hand Arm Vibration and high performance compaction from the 13kN vibrator.
REPLACEMENT FOR THE PCLX 400.
PLEASE NOTE, DELIVERY WILL REQUIRE ASSISTANCE TO UNLOAD MACHINE FROM VEHICLE DUE TO WEIGHT.
Any questions? Need assistance? Call our helpline on 01603 756128
Product Details
FEATURES & BENEFITS
- Low Hand-Arm Vibration design for longer safe usage times.
- Powerful, reliable Honda GX120 petrol engine.
- High performance 13kN vibration unit gives excellent compaction force and travel speeds.
- Tubular frame designed to protect vulnerable components.
- Baseplate designed for optimised speed and manoeuvrability.
- Lightweight yet durable for easy transport.
- Fits in a standard car boot when the handle is folded.
- Fitted with manual handling points.
- Engineered to be robust and durable for rental and heavy contractor usage.
- Easy to operate and control, the baseplate does not dig in when dragged backwards or turned.
- Optional, removable 12-litre water tank features a quick-release design.
- Optional wheel kit to aid on-site transportation available.
- Optional paving pad for block paving applications available.
| Model | Part Number | Engine Power (HP) - (kW) |
Static Pressure (kg/m2) |
Centrifugal Force (kN) |
Frequency (Hz) |
Max. Travel Speed (m/min) |
Dimensions W x L x H (mm) |
Vibration Level (m/sec2) |
Weight (Kg) |
| PCLX 32 - Honda GX120 Petrol | LC3271 | 3.2 / 2.4 | 567 | 13 | 101 | 20 | 320 x 950 x 935 | 2.49 | 64 |
| PCLX 32 - Loncin H135 Petrol | LC3274 | 3.5 - 2.6 | 567 | 13 | 101 | 20 | 320 x 950 x 935 | 2.49 | 64 |
| PCLX 32 - Honda GX120 Petrol & Water Kit | LC3271W | 3.2 / 2.4 | 585 | 13 | 101 | 20 | 320 x 950 x 935 | 2.49 | 66 |
| PCLX 32 - Loncin H135 Petrol & Water Kit | LC3274W | 3.5 - 2.6 | 585 | 13 | 101 | 20 | 320 x 950 x 935 | 2.49 | 66 |
| PCLX 40 - Honda GX120 Petrol | LC4071 | 3.2 / 2.4 | 475 | 13 | 101 | 20 | 400 x 950 x 935 | 2.50 | 68.5 |
| PCLX 40 - Loncin H135 Petrol | LC4073 | 3.5 - 2.6 | 475 | 13 | 101 | 20 | 400 x 950 x 935 | 2.50 | 68.5 |
| PCLX 40 - Honda GX120 Petrol & Water Kit | LC4071W | 3.2 / 2.4 | 503 | 13 | 101 | 20 | 400 x 950 x 935 | 2.50 | 70.5 |
| PCLX 40 - Loncin H135 Petrol & Water Kit | LC4073W | 3.5 - 2.6 | 503 | 13 | 101 | 20 | 400 x 950 x 935 | 2.50 | 70.5 |
