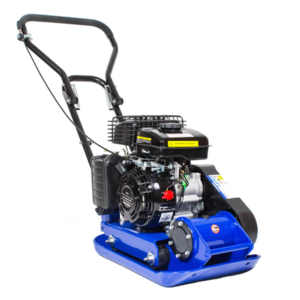

Hyundai – HYCP5030 – Petrol Plate Compactor

Name: Hyundai – HYCP5030 – Petrol Plate Compactor
Brand: Hyundai
SKU: HYCP5030
Price: 345.43 GBP
Availability: InStock

View Larger

SKU: HYCP5030

£345.43 inc VAT/£287.86 ex VAT

The HYCP5030 is powered by an 87cc 4-stroke recoil start petrol engine, with a large 1.6L fuel tank for long running. It’s ideal for compacting loose soil, gravel and sand together to create a solid and even foundation, providing a cost-effective alternative to hiring for the building, construction and landscaping industries.

View full product details

Any questions? Need assistance? Call our helpline on 01603 756128

Product Details

Key Features

Powered by an 87cc 4-stroke recoil start petrol engine for reliable performance.
Ideal for compacting soil, gravel and sand together for patios, driveways, conservatories and more.
Equipped with a large 1.6L fuel tank for long running.
Fitted with a large 495mm x 320mm plate for working effectively on large areas.
Has a travelling speed of 25m/min, with a compaction depth of 150mm.
Wheel Kit and Paving Pad included.

Specifications


Model	HYCP5030
Start Method	Recoil
Compaction Depth (mm)	200
Plate Size (mm)	495 x 320
Centrifugal Force (N)	8200
Travel Speed (m/min)	25
Vibration value m/s2	17.5
Exciter Oil Capacity (ml)	80
Exciter Speed (RPM)	5900
Handle Type	Soft Grip
Safety Features	Oil Alarm
Engine Model	152F
Engine Type	Hyundai 4-Stroke
Engine Size (cc)	87
Rated Power (hp)	1.6
Rated Speed (RPM)	3600
Fuel	Unleaded Petrol
Fuel Capacity (L)	1.6
Engine Oil	SAE30 or SAE15W40
Engine Oil Capacity (ml)	400
Sound Level (db)	91
Gross Weight (kg)	50
Net Weight (kg)	48
Fully Assembled Dimensions (H x W x L) (mm)	300 x 865 x 1040
Package Dimensions (H x W x L) (mm)	450 x 400 x 650
Fuel Type / Power Source	Petrol
Product Type	Compactor Plate
Warranty (years)	3
Commercial Warranty (years)	1
Model EAN	747150287850
In The Box	HYCP5030 & Manual
