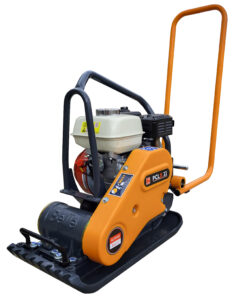

Altrad Belle – PCLX 32S Streetworks Honda Engine – Plate Compactor
View LargerSKU: LX3271
£1,169.99 inc VAT/£974.99 ex VAT
REPLACEMENT FOR THE PCLX 320 STREETWORKS.
PLEASE NOTE, DELIVERY WILL REQUIRE ASSISTANCE TO UNLOAD MACHINE FROM VEHICLE DUE TO WEIGHT.
Any questions? Need assistance? Call our helpline on 01603 756128
Product Details
Low Hand-Arm Vibration design for longer safe usage times.
‘Dual Force’ base plate provides added compaction to meet UK HAUC requirements.
The baseplate is made from Strenx™ performance steel with a Hardox® wear plate for added strength and durability.
Powerful, reliable Honda petrol engine
High performance 13kN vibration unit gives excellent compaction force and travel speeds.
Tubular frame designed to protect vulnerable components.
Lightweight yet durable for easy transport.
Fits in a standard car boot when the handle is folded.
Fitted with manual handling points.
Engineered to be robust and durable for rental and heavy contractor usage.
Improved productivity with fast travel speeds.

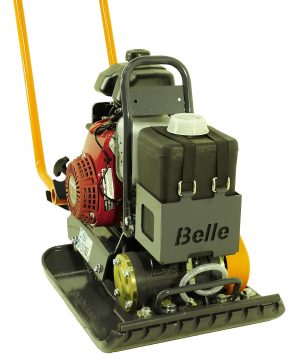

Optional, removable 12-litre water tank features a quick-release design.
Customer colour options available.
| Model | Part Number | Engine Power (Hp) - (kW) |
Static Pressure (kg/m2) |
Centrifugal Force (kN) |
Frequency (Hz) |
Max. Travel Speed (m/min) |
Dimensions W x L x H (mm) |
Vibration Level (m/sec2) |
Weight (Kg) |
| PCLX 32S 'Streetworks' - Honda GX120 Petrol | LX3271 | 3.2 - 2.4 | 1662 | 13 | 101 | 18 | 320 x 835 x 936 | *2.26 | 67 |
| PCLX 32S 'Streetworks' - Loncin H135 Petrol | LX3273 | 3.5 - 2.6 | 1662 | 13 | 101 | 18 | 320 x 835 x 936 | *2.26 | 67 |
| PCLX 32S 'Streetworks' - Honda GX120 Petrol & Water Kit | LX3271W | 3.2 - 2.4 | 1662 | 13 | 101 | 18 | 320 x 835 x 936 | *2.26 | 69 |
| PCLX 32S 'Streetworks' - Loncin H135 Petrol & Water Kit | LX3273W | 3.5 - 2.6 | 1662 | 13 | 101 | 18 | 320 x 835 x 936 | *2.26 | 69 |
*Vibration levels tested to BS5349 using EN 500-4
