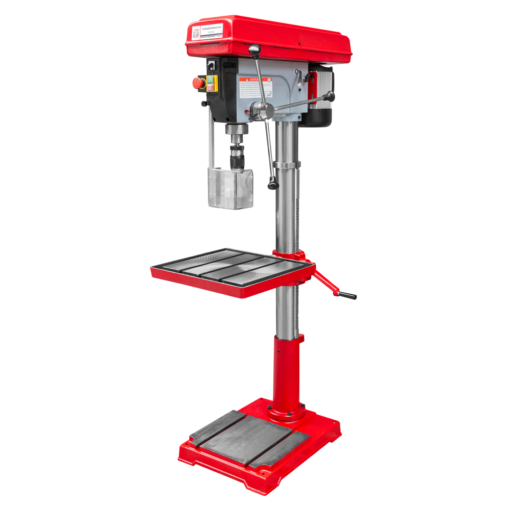

Holzmann – SB4132LR 16mm Pillar Drill
SKU: SB4132LR
£1,057.99 inc VAT/£881.66 ex VAT
OUT OF STOCK
- Left/right rotation
- Features solid, polished base with T-nuts
- Aluminium motor according IP54
- Torsion-resistant, solid and polished steel column
- The worktable is tiltable from-45° to +45° and rotates 360° around table centre and column
- Spindle protection cover
- Adjustable drill depth stop with scale for accurate drill depth control
Any questions? Need assistance? Call our helpline on 01603 756128
Product Details
Motor data
- Motor power s6 in W: 2200
- Motor power s1 in W: 1500
- Voltage: 400V
Measurements
- Total dimensions in mm: 570x870x1710
- Table size in mm: 475×425
- Outreach in mm: 257
- Max. height in mm: 1710
Technical specification
- Max. drilling performance in mm: 32
- Base in mm: 580×450
- Spindle stroke in mm: 120
- Distance spindle-base in mm: 1160
- Max. distance spindle-table in mm: 680
- Drilling spindle collet: MK4 / MT4
- Drilling spindle speed in min-1: (12) 120-3480
- Column diameter in mm: 90 / 2,5
Weight
- Net weight in kg: 120
- Gross weight in kg: 125
Packaging
- Packaging height in mm: 333
- Packaging width in mm: 653
- Packaging length in mm: 1.450
