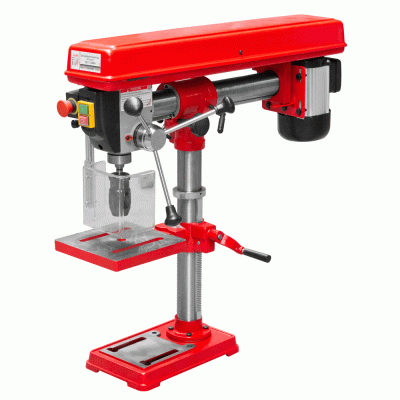

Holzmann – SB3116RMN 16mm Radial Arm Drill 230v

SKU: SB3116RMN

£440.99 inc VAT/£367.49 ex VAT

FREE delivery to UK mainland
  • Solid base plate for good stability
  • Aluminium motor according to IP54
  • Rigid drilling column with ground surface
  • Rotatable drilling table via rack as required
  • Height adjustable
  • Practical three-arm lever with drilling depth graduation
  • Fold-away quick-release chuck cover made of plexiglass
  • Drilling depth stop

Any questions? Need assistance? Call our helpline on 01603 756128

Product Details

Motor data
  • Motor power S1 in W: 600
  • Motor power S6 in W: 900
  • Tension: 230V
General dimensions
  • Projection in mm: 130 – 420
  • Table size in mm: 220 x 220
  • Max. Height in mm: 805
Technical specification
  • Base plate in mm: 210 x 350
  • Max. Drilling capacity in mm: 16
  • Drilling spindle speed in min-1: (5) 500-2500
  • Drilling spindle mount: MK2 / MT2
  • Quill stroke in mm: 80
  • Distance spindle to base plate in mm: 470
  • Max. Distance spindle-table in mm: 355
  • Column diameter in mm: 60
Weight
  • Gross weight in kg: 44
  • Net weight in kg: 40
