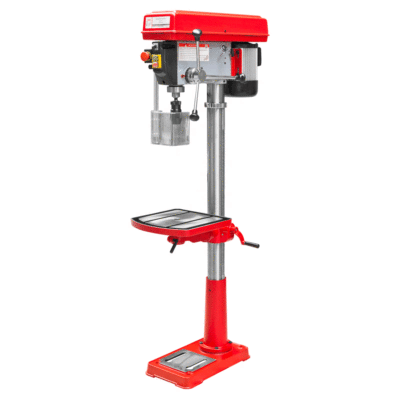

Holzmann – SB2516H 16mm x 16 Speed Pillar Drill Press 230v

SKU: SB2516H

£660.99 inc VAT/£550.83 ex VAT

FREE delivery to UK mainland
  • Solid base plate for good stability
  • Aluminium motor according IP54
  • Torsion-resistant, solid and polished steel column
  • The worktable is tiltable from-45° to +45° and rotates 360° around table centre and column
  • Spindle protection cover
  • Adjustable drill depth stop with scale for accurate drill depth control

Any questions? Need assistance? Call our helpline on 01603 756128

Product Details

Motor data
  • Motor power s1 in W: 1100
  • Voltage: 230V
Measurements
  • Total dimensions in mm: 1635x356x780
  • Table size in mm: 356×356
  • Outreach in mm: 215
  • Max. height in mm: 1635
Technical specification
  • Max. drilling performance in mm: 25
  • Base in mm: 485×290
  • Spindle stroke in mm: 80
  • Distance spindle-base in mm: 1220
  • Max. distance spindle-table in mm: 725
  • Drilling spindle collet: MK3 / MT3
  • Drilling spindle speed in min-1: (16) 160-3000
Weight
  • Net weight in kg: 79
  • Gross weight in kg: 81
