Lumag – RPi 31 DE Reversible Plate Compactor
SKU: RP-i31DE
£2,476.99 inc VAT/£2,064.16 ex VAT

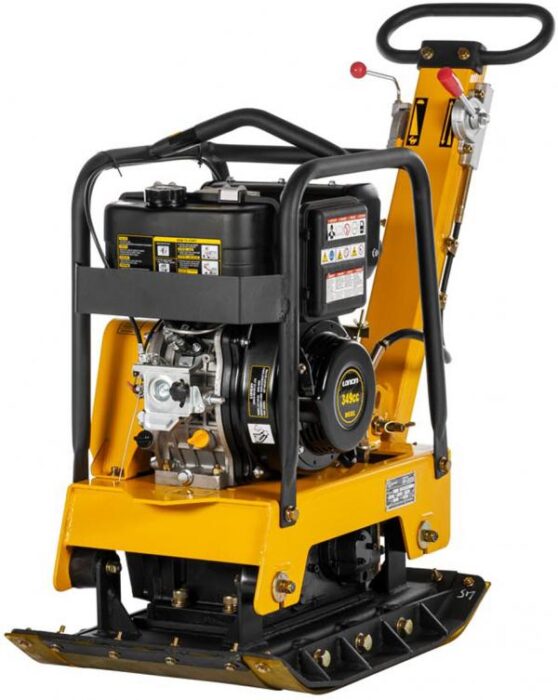

The RPi31 DE is a Diesel forward/reverse compactor plate. This machine is powerful and manoeuvrable making it great for large paved areas, trench and ground works. The plate size can be increased and decreased by the removal of the side extension plates. Fitted with the excellent Loncin engine and a cast iron base plate. As with all of our compactor plates you will need to purchase the transport wheels/axle and paving mat separately.
Any questions? Need assistance? Call our helpline on 01603 756128
Product Details
Equipment features:
- The vibrating plate with forward and reverse is the ideal tool for consolidating the substrate and for vibrating small to medium-sized areas. Especially applicable in gardening and landscaping, in the production of sidewalks and terraces, in laying paving, in building foundations, in trench and sewer construction, as well as for compacting composite paving.
- It is much more manoeuvrable and agile than a vibrating plate that only runs forwards.
- Stepless regulation of the movement in both directions.
- Robust, long-lasting cast base plate for particularly precise work
- Diesel engine with pre-glow function and electric start – Protective frame and widening
- Equipped with a V-belt protected on all sides.
| Motor / drive | LC 178FD diesel engine |
| Engine power | 4.9 kW at 3,600 rpm |
| Displacement | 349 cc |
| Fuel tank | 3.5 l |
| Plate length | 700 mm |
| Plate width | 360 mm |
| Mounting plate | 700 x 100 mm |
| frequency | 67 Hz |
| Centrifugal force | 30.5 kN |
| Area performance | approx. 450 m² / hour |
| Max. Feed | 25 m / min. |
| Vibration shocks | 4,810 vpm |
| Compaction depth | 50 cm |
| Max. Permissible inclination of the motor | 20 ° |
| Sound power level LWA | 108 dB (A) |
| Operating weight | 199 kg |
| Packaging dimensions (LxWxH) | 810 x 425 x 1010 mm |
