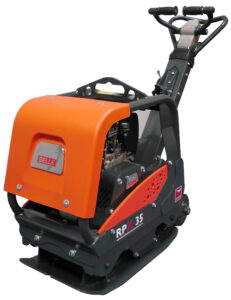

Altrad Belle – RPX 35/50D Hatz Engine – Plate Compactor
View LargerSKU: 161.9.206
£4,444.99 inc VAT/£3,704.16 ex VAT
Heavy duty range of reversible plate compactors built to withstand the harshest site conditions. With improved base plate design for excellent gradability & increased travel speeds and a higher compaction force for shorter usage times and deeper compaction. Complete with integrated Wheel Kit for easy transportation these are the perfect solution for the rental market.
Any questions? Need assistance? Call our helpline on 01603 756128
Product Details
Advantages
- Robust design for long-life and use in the harshest site conditions.
- Electric start with key ignition & LED warning lamps, eliminates need for operator training with manual starting.
- Integrated Wheel Kit, ready for safe and easy transportation.
- Control Handle & Additional Fixed Handle with strong locking:- - More positive handling & control. - Reduces shock loading on control handles. - Better fulcrum for pulling machine onto its wheels. - Safe for operator moving without relying on moving control handles. - No damage to the forward/reverse mechanism.
- Angled baseplate for excellent gradability and travel speeds.
- Low HAV handle, safe for operators to use for long periods.
- High Compaction force for fast work and deep compaction.
- Handle mounted throttle, perfect for the operator
- Compact, high performance, sealed for life Lithium Ion battery. Dry battery = no liquid acid
- Specifically designed for hire and rental markets.
- Paving Pad option available
| Ref | Model | Engine Power (hp/kW) |
Plate Size WxL (mm) |
Static Pressure (kg/m2) |
Centrifugal Force (kN) |
Frequency (Hz) |
Max Gradient (°) |
Travel Speed (m/min) |
Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 161.9.202 | RPX 35/40 | Honda GX200 Petrol - 5.5 / 4.0 | 400 x 700 | 1351 | 35 | 81 | 20 | 27 | 176 |
| 161.9.200 | RPX 35/40D | Hatz 1B20 Diesel - 4.2 / 3.1 | 400 x 700 | 1436 | 35 | 81 | 20 | 27 | 187 |
| 161.9.201 | RPX 35/40DE | Hatz 1B20 Diesel Electric Start - 4.2 / 3.1 | 400 x 700 | 1449 | 35 | 81 | 20 | 27 | 189 |
| 161.9.205 | RPX 35/50 | Honda GX200 Petrol - 5.5 / 4.0 | 500 x 700 | 1104 | 35 | 81 | 20 | 26 | 180 |
| 161.9.206 | RPX 35/50D | Hatz 1B20 Diesel - 4.2 / 3.1 | 500 x 700 | 1172 | 35 | 81 | 20 | 26 | 191 |
| 161.9.204 | RPX 35/50DE | Hatz 1B20 Diesel Electric Start - 4.2 / 3.1 | 500 x 700 | 1190 | 35 | 81 | 20 | 26 | 194 |
| 161.9.208 | RPX 35/60 | Honda GX200 Petrol - 5.5 / 4.0 | 600 x 700 | 944 | 35 | 81 | 20 | 25 | 185 |
| 161.9.203 | RPX 35/60D | Hatz 1B20 Diesel - 4.2 / 3.1 | 600 x 700 | 1000 | 35 | 81 | 20 | 25 | 196 |
| 161.9.2070 | RPX 35/60DE | Hatz 1B20 Diesel Electric Start - 4.2 / 3.1 | 600 x 700 | 1057 | 35 | 81 | 20 | 25 | 207 |
