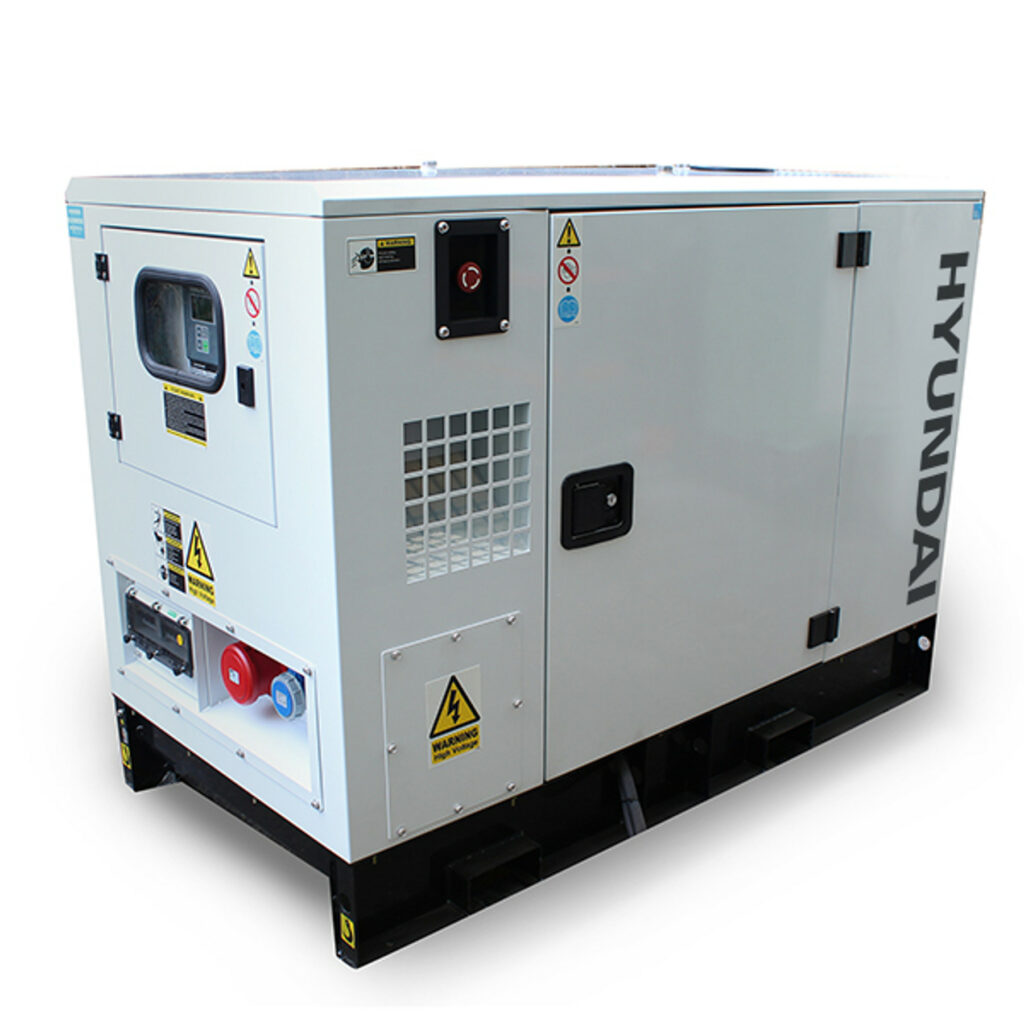

Hyundai – DHY11KSE – 8.8kW (Three Phase) Diesel Generator
View LargerSKU: DHY11KSE
£6,734.99 inc VAT/£5,612.49 ex VAT
Out of stock
The DHY11KSE is a powerful three-phase diesel generator from Hyundai. Suitable for powering three-phase equipment in your home, business or factory, this diesel genset has a maximum output of 11KVA.
PLEASE CONTACT US FOR STOCK AVAILABILITY
Any questions? Need assistance? Call our helpline on 01603 756128
Product Details
Key Features
- Three-phase diesel generator: Produces up to 11kVA of power
- Powered by a 1500rpm engine: Extends the lifespan of the generator
- Fitted with an AVR alternator: Able to produce a clean energy output
- Silenced generator: Housed in a weather-proof canopy, producing only 65dB at 7m
- ATS compatible: Automatically transfers power to the generator in the event of a power cut
- Large fuel tank: For extended running time
- Peace of mind: 2 year Hyundai warranty
Specifications
| Model | DHY11KSE |
|---|---|
| Rated/Prime kVA* | 10 |
| Rated/Prime kW | 8 |
| Max/Standby kVA* | 11 |
| Max/Standby kW | 8.8 |
| Phase | Three |
| Voltage | 230 / 400 |
| Connection Method(s) | 1 x 400v 63A 1 x 230v 16A |
| Rated Speed (RPM) | 1500 |
| Frequency (Hz) | 50 |
| Max/Continuous Current (Amps) | 16 / 14 |
| Power Factor (Cosφ) | 0.8 |
| Fuel Type | Diesel |
| Fuel Tank (Litres) | 42 |
| Runtime (Hours) @ 100% Load | 12 |
| Noise Level @ 1m 75% load (dB) | 68 |
| Noise Level @ 7m 75% load (dB) | 62 |
| Hyundai Diesel Engine Model | HY380 |
| Power Output (kw) | 11 |
| Displacement (CC) | 1360 |
| No. of Cylinders | 3 |
| Displacement (Litres) | 1.36 |
| Recommended Oil Type | SAE 15W40 |
| Oil Capacity (Litres) | 3.5 |
| Oil Filter Part No. | JX0810Y |
| Aspiration | Natural |
| Fuel Regulation/Governor System | Mechanical |
| Fuel Consumption (100% Load) [Litres] | 3.5 |
| Fuel Filter Part No. | C0506 |
| Cooling | Water |
| Alternator Model | 164B |
| Breakers | 3P+N C63A 100mA |
| Alternator Type | Brushless |
| Voltage Regulation | AVR |
| Air Filter Part No. | K1317 |
| Net Weight (kg) | 480 |
| Gross Weight (kg) | 480 |
| Dimensions L x W x H (mm) | 1500 x 760 x 1090 |
| Battery System / Starting (V - Ah) | 2X12V - 30Ah |
| ATS / MTS Compatible | Yes |
| Control Panel | ComAp AMF9 |
| Model EAN | 6090200010101 |
| Warranty | 1 Year / 1000 Hours (can extended to 2 years, subject to standby use of 500 hours per year. Terms apply*) |
