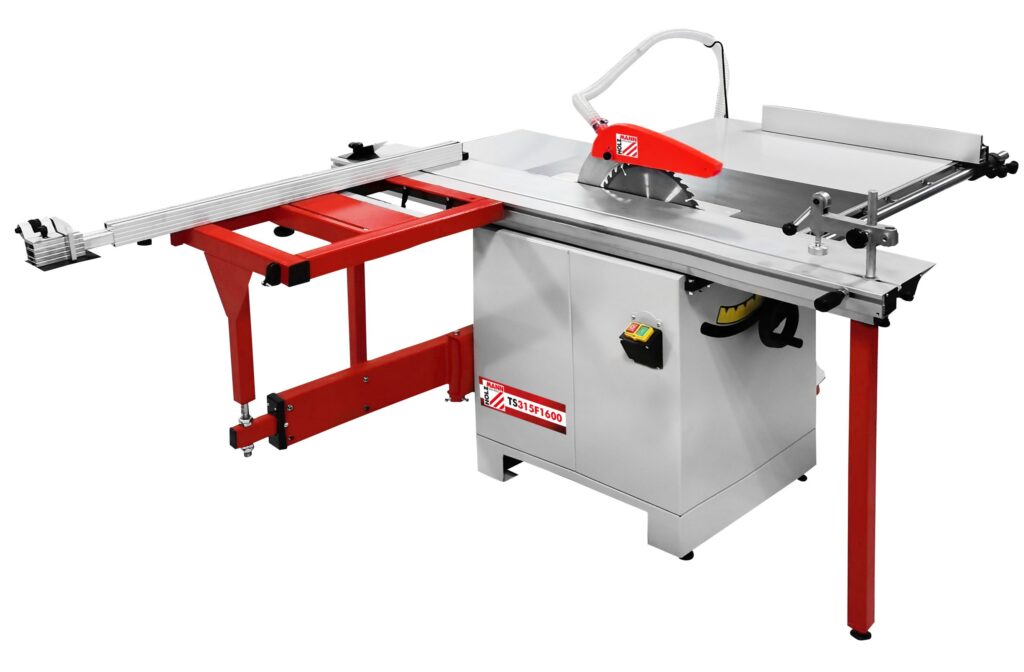

Holzmann – TS315-F1600 315mm Panel Saw 415v
View LargerSKU: TS315F1600-415V
£2,527.99 inc VAT/£2,106.66 ex VAT
CARRIAGE COST POA
- Swivelling and height-adjustable circular saw blade
- 1600 mm long format sliding table with support roller on the boom
- Saw blade with Ø315mm enables a cutting height of up to 100mm
- Stable and precisely guided rip fence
- Strong cast iron table for a long service life
- Table extension and table widening
Any questions? Need assistance? Call our helpline on 01603 756128
Product Details
Motor data
- Motor power S1 in W: 2200
- Tension: 230V / 50Hz
- Motor power S6 in W: 3100
General dimensions
- Table size in mm: 800 x 365
- Table height in mm: 850
- Table extension in mm: 350 x 365
- Table extension in mm: 800 x 540
- Format sliding table in mm: 238 x 1600
- Extraction connection in mm: 100
- Installation dimension in mm: 3000 x 3200 x 1200
Cutting performance
- Max. Cutting height 90 ° in mm: 100
- Max. Cutting height 45 ° in mm: 70
- Max. Trimming length in mm: 1400
Circular saws
- Saw blade (/ hole) in mm: m315 / (30)
- Saw blade speed in min-1: 4000
Volume and vibrations:
- Sound power level in dB (A) 103
- Sound pressure level in dB (A) 89.5
