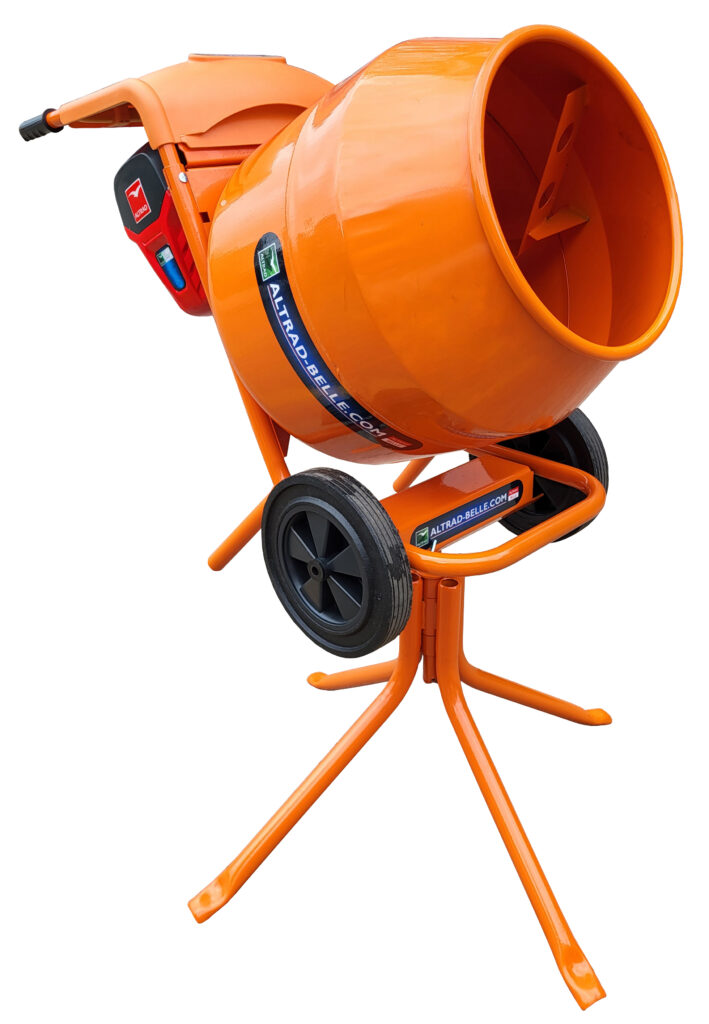

Altrad Belle Minimix 150E+ Battery Portable Mixer

Compact, heavy duty, professional tip-up Cement Mixer with an emission free, Li-ion battery powered motor for all your mixing requirements, outdoor usage, indoor usage and poorly ventilated areas. The Minimix 150E+ can be used on or off its stand and is the ideal portable and robust solution for mixing concrete & mortar but without any engine emissions or the need for an electrical power supply….Building A Sustainable Future!  Ideal for use with the Altrad Belle Warrior Wheelbarrow

Any questions? Need assistance? Call our helpline on 01603 756128

Product Details

Proven robust and durable design.
● Compact & portable for easy transportation.
● Mixes a full barrow load of concrete or mortar.
● 82v 5 Ah or 8Ah battery options
- 5Ah = 2.0m3 mix output on 1 single charge - the equivalent of 20* mixes of concrete / mortar.
- 8Ah = 3.0m3 mix output on 1 single charge - the equivalent of 30* mixes of concrete / mortar.
● Environmentally friendly, emission free for use indoors & in poorly ventilated areas such as basements and tunnels.
● Can be operated in environmentally sensitive areas, such as green spaces, nature reserves, national parks, rural railway cuttings and emission controlled urban areas, without any exhaust emissions.
● Low noise offers increased working hours and usage in noise restricted areas.
● No routine power unit maintenance eliminates servicing or costly downtime due to repairs. No blocked carburettors.
● Cordless design gives added flexibility when positioning the mixer for operation.
● Complete with barrow height swivel and stand.
● Extra thick drum with quick mix paddles.
● Quick release / connect battery with digital power level display.
● Heavy-duty sealed cast gearbox for longer life.
● Ideal for use with the Altrad Belle Warrior Wheelbarrow...The Ultimate Combo!!

*the figures are based on standard mix rates of 3 minutes per mix.



Model
Part
Number
Motor Power
(Hp) - (kW)
Max. Drum
Capacity
(Ltr)


Max. Mixing
Capacity
(Ltr)



Drum
Speed
Paddle
Type
Off-Stand
Dimensions
W x L x H (mm)
On-Stand
Dimensions
W x L x H (mm)
*Weight Without
Stand & Battery
(Kg)
Minimix 150E+ - 82v Battery Powered
(1 x 5Ah Battery & 1 x Battery Charger)
M83B 2.0 - 1.5 130 90 24rpm 2 x Rapid Mix 597 x 1211 x 890 1057 x 1227 x 1432 59
Minimix 150E+ - 82v Battery Powered
(1 x 8Ah Battery & 1 x Battery Charger)
M84B 2.0 - 1.5 130 90 24rpm 2 x Rapid Mix 597 x 1211 x 890 1057 x 1227 x 1432 59



Model
Part
Number
Max.
Voltage (v)
Nominal
Voltage (v)
Energy
Rating (Wh)
Energy
Capacity (Ah)
80% Charge
Time (mins)
100% Charge
Time (mins)
Dimensions
W x L X H (mm)
Weight
(Kg)
82v 5Ah Li-Ion Battery OPP/13/DIO 82 72 360 5 28 39 90 x 120 x 214 2.8
82v 8Ah Li-Ion Battery OPP/14/DIO 82 72 580 5 48 65 90 x 120 x 240 3.9
