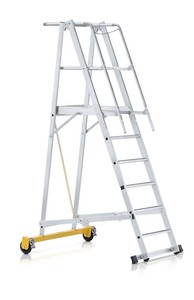

Zarges – Mobile Platform Folding Ladder 12 Tread

SKU: 41209

£2,513.99 inc VAT/£2,094.99 ex VAT

FREE delivery to UK mainland

The flexible storage and retrieval solution for use on shelving, with high mobility, compact size when folded and large storage tray.

Any questions? Need assistance? Call our helpline on 01603 756128

Product Details

  • High-strength ZARGES quality flanged connection between tread and stile.
  • Large storage and retrieval tray.
  • Aluminium work platform, approx. 600 mm ? 630 mm, with safety guard rail on three sides.
  • Complies with new European standard DIN EN 131-7.
  • Access section with horizontal stabiliser bar, support section with chassis beam, wheels with locking mechanism (diameter 160 mm).
  • Narrow chassis with ballast on request.
  • Easy folding of the ladder for space-saving storage due to hinges in both diagonal braces.

Note

  • Ballast weights not included in the scope of delivery.
Order No. Platform height (m) Height including railing (m) Overall span (m) Chassis-beam width (m) Wide crosspiece (m) Stile depth steps/back stay (mm) Number of rungs, incl. platform Weight (kg) ?
?41201 1,00 2,00 1,25 1,09 - 73 / 58 4 42,0
?41202 1,30 2,30 1,40 1,09 - 73 / 58 5 43,0
?41203 1,60 2,60 1,50 1,29 1,00 73 / 58 6 47,0
?41204 1,80 2,80 1,65 1,29 1,00 73 / 58 7 50,6
?41205 2,10 3,10 1,80 1,69 1,00 73 / 58 8 55,0
?41207 2,60 3,60 2,10 1,88 1,40 73 / 73 10 61,0
?41209 3,10 4,10 2,40 1,88 1,80 73 / 73 12 65,8
