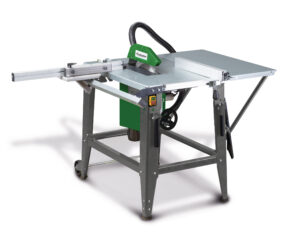

Sturmer – TKS 316 E Circular Saw Bench
View LargerSKU: 5902316
POA
- Inclination of the saw blade from 0 to 45°, adjustable without tools
- Height adjustment of the saw blade via hand crank and scale
- Large aluminum rip fence with eccentric quick release, can be used as a miter fence as well
- Large, galvanized steel machine table
- Easy to move thanks to integrated chassis with two wheels and foldable transport handles
- Delivered unmounted
Any questions? Need assistance? Call our helpline on 01603 756128
Product Details
- Length (product) approx. 1600mm
- Width/depth (product) approx. 600mm
- Height (product) approx. 1050mm
- Net weight approx. 53kg
- Extraction port diameter bottom 100mm
- Saw blade protection extraction port diameter 35mm
- Supply voltage 230V
- Mains frequency 50Hz
- Absorbed power drive motor 2,2kW
- Delivery power 1.6kW
- Protection class drive motor IP 54
- Duty type drive motor S6 40%
- Motor speed 2800min¯¹
- Total current draw 9A
- Table length 800mm
- Table width 550mm
- Work height 850mm
- Max. cutting width with rip fence 290mm
- Saw blade angle 90 – 45°
- Max. cutting height 90° 83mm
- Max. cutting height 45° 60mm
- (Main) saw blade diameter 315mm
- (Main) saw blade speed 2800min¯¹
