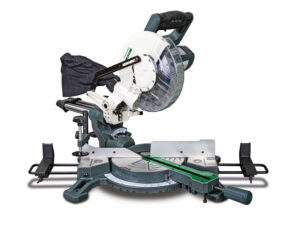

Sturmer – KGZ 210 Mitre Saw
View LargerSKU: 5702210
POA
- Infinitely adjustable double mitre and tilt to the left
- Base plate and rotary table made of die-cast aluminium, at the same time compact, robust and easily transportable
- Laser projection on the workpiece for precise control of the cutting position
- Laterally extendable support aids for longer workpieces
- Double adjustable cross-cut depth limiter
- Pull function for extended cutting range
- Standard with hold-down clamp for safe workpiece locking
- Extraction connection for dust collection bag or connection of an external extraction system
Any questions? Need assistance? Call our helpline on 01603 756128
Product Details
- Saw band speed 4500min
- Saw blade diameter 210mm
- Sound pressure level 93.6dB(A)
- Sound power level 106.6dB(A)
- Vibration emission value 4.58m/s²
- Extraction duct outside nominal width 32.5mm
- Max. bevel angle range left 45°
- Max. mitre left 45°
- Max. mitre right 45°
- Dimensions and weights
- Length (product) approx. 650mm
- Width/depth (product) approx. 450mm
- Height (product) approx. 430mm
- Net weight approx. 10.5kg
- Supply voltage 230V
- Mains frequency 50Hz
- Drive motor output 1,5kW
- Cutting capacity at 0° inclination / 0° mitre 220 x 70mm
- Cutting capacity at -45° inclination / 0° mitre 155 x 70mm
- Cutting capacity at 0° inclination / -45° mitre 220 x 35mm
- Cutting capacity at -45° inclination / -45° mitre 155 x 35mm
