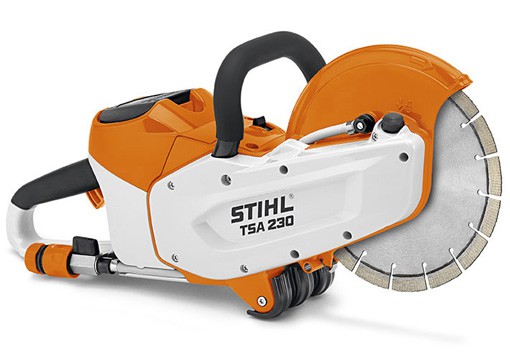

Stihl – TSA 230 – Battery Powered Disc Cutter
SKU: 48640116600
£428.99 inc VAT/£357.49 ex VAT
TSA230 (Li-Ion 36v) battery disc cutter.
BATTERIES AND CHARGER NOT INCLUDED AS STANDARD.

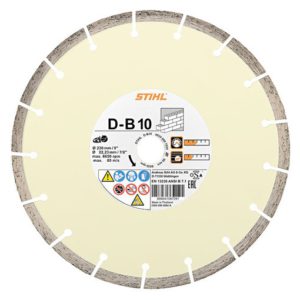

Supplied with abrasive cutting disc. Diamond blades sold separately (see below for range of options).
STIHL is proud to introduce the world’s first 9” cordless cut off saw. Cutting neatly and swiftly up to 70mm deep, the TSA 230 is ideal for cutting roofing tiles, bricks, metal and paving blocks. It is particularly light at only 3.9 kg (without battery). Emission-free cordless technology benefits both the operator and environment whilst allowing the tool to be operated indoors and outdoors. The water connection and vacuum accessories ensure effective dust control when cutting. Supplied with an abrasive wheel for cutting steel.
View product video
Any questions? Need assistance? Call our helpline on 01603 756128
Product Details
Standard Features
Low-Maintenance Motor Technology
The EC motor with maintenance-free belt drive and enclosed control unit is very durable and low maintenance.
Magnesium Guard
The cutting wheel guard is made from a light and durable die cast aluminium.
Ergonomic Handle
The ergonomic wrap around handle allows for a more comfortable and precise use in a variety of positions.
Spindle Lock Mechanism
Cutting wheels can be changed quickly and easily.
STIHL electric motor (EC)
The STIHL electric motor (EC) is extremely energy efficient, lightweight and compact. It runs quietly, generates very low vibrations and does not require servicing.
Hose Attachment
Water is supplied to the cutting wheel through the standard water connection with sprinkler system to suppress the dust produced during cutting. It is supplied to the device in such a way so as not to interfere with your work.
Coasting Brake
Electronic coasting brake brings the blade to a quick stop. No free wheeling.
Additional Features
Depth Limiter with Vacuum Attachment
This adjustable depth limiter allows a guided cut for up to 60mm. The integrated 28mm vacuum attachment reduces dust (once attached to a dust extraction system) when cutting mineral based materials, allowing the saw to be used indoors without water suppression.
| Cordless technology | 36V Lithium-Ion |
| Recommended battery | AP 300 |
| Battery life time AP 200 min 1) | up to 12 |
| Battery life time AP 300 min 1) | up to 18 |
| Battery life time AR 2000 min 1) | up to 75 |
| Battery life time AR 3000 min 1) | up to 95 |
| Maximum cutting depth mm | 70 |
| Cutting wheel mm/in | 230/9 |
| Weight kg 2) | 3.9 |
| Vibration levels left/right m/s² 3) | 3.5/3.5 |
| Sound pressure level dB(A) 4) | 103 |
| Sound power level dB(A) 4) | 114 |
- Battery life times are approximate and may vary depending on application
- Without battery and cutting wheel
- (K) factor according to Dir. 2006/42/EC = 2m/s²
- Power factor according to DIR2006/42/EC=2.5(dB(A))
