FOR MORE PLEASANT WORK. Vibrations can occur when you put your power tools through their paces, and these are particularly noticeable in the grip area. The buffer and spring elements of the STIHL anti-vibration system reduce the transmission of vibrations to the handle area and therefore to your body. The result is that your power tool is more comfortable to hold and your work is much less tiring.

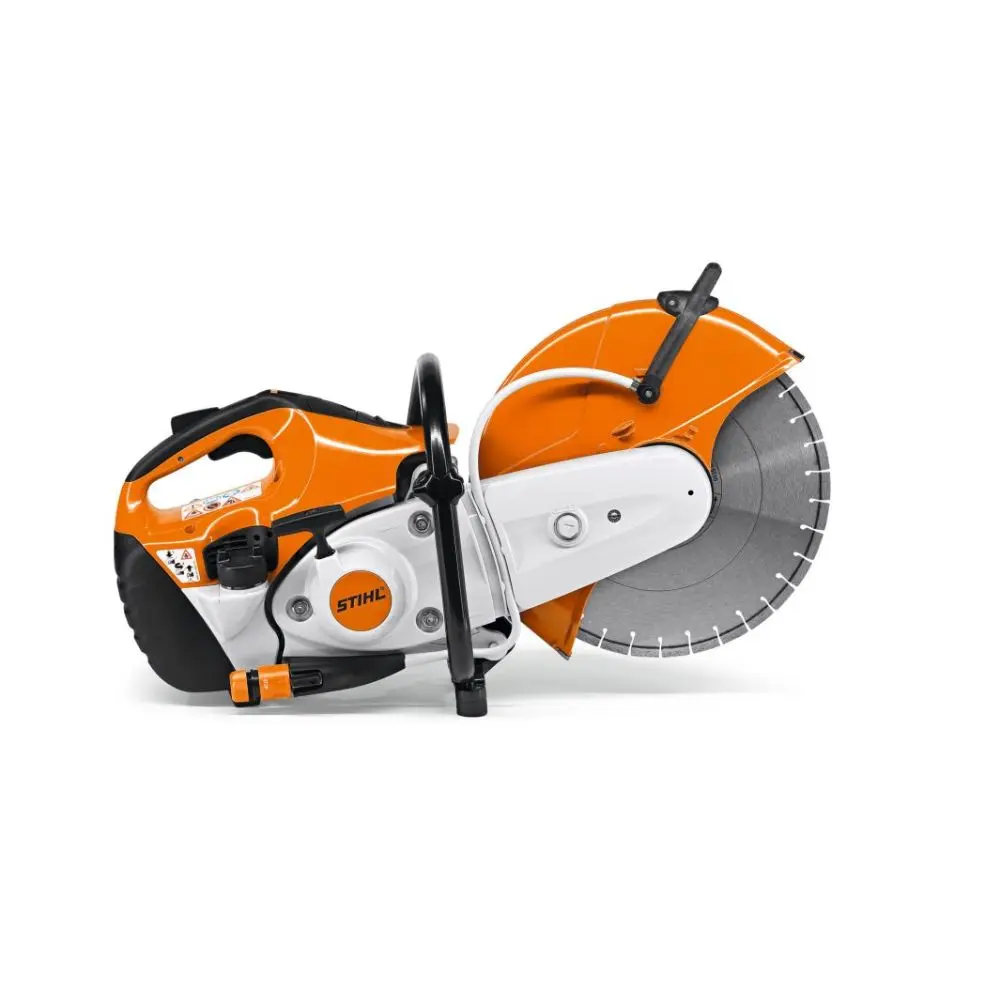

Stihl – TS 410 – Petrol Disc Cutter
TS 410 (Stihl 2-MIX) 300mm petrol disc cutter.
Diamond blades sold separately (see below for range of options).
Compact and robust, the Stihl TS410. Long-life filter system with cyclone pre-separation makes on site maintenance unnecessary. Extremely low vibration levels (3.9m/s²). High performance engine with stratified charge system. Compact design and optimised balance for excellent cutting and guide characteristics. For use with 300mm cutting wheel. ElastoStart, primer pump and decompression valve. Bayonet filler cap for tool free opening. Can be hand held or used with the FW 20 cart. Supplied with abrasive cutting wheel.
Any questions? Need assistance? Call our helpline on 01603 756128
Product Details
Features & Functionality
FOR FEWER STARTING STROKES. The manual fuel pump reduces the number of strokes required to start the power tool, making the start-up process quicker and easier This is particularly helpful after longer breaks in operation. To use it, actuate the pump several times before starting. This will ensure that there is enough petrol in the system when starting.
EFFORTLESS START-UP. The decompression valve makes it easier to start your power tool. When starting, you can allow some of the compressed mixture to escape from the cylinder by opening the valve. This protects the start-up system and reduces the amount of force required on the starter cord.
FOR DUST BINDING AND COOLING. For work with your power tool, this provides a permanent water supply to the cutting wheel. It is used to bind dust and cool the cut. The dosable water connection directly on the machine makes cutting with water easy and convenient.
EXTENDS THE BELT’S SERVICE LIFE. Semi-automatic STIHL belt tensioning makes it easier for you to re-tension the drive belt. Consistent tension extends the service life of the belt and bearing. For more detailed information on re-tensioning, please refer to the operating instructions of your power tool.
ENSURES A LONG FILTER SERVICE LIFE. The long-life air filter system for cut-off machines does not collect coarse dust particles, but uses cyclone air routing to separate them and then discharges them into the ambient air. With just this first step the system removes around 80% of dust particles in the intake air. This enables an extremely long filter service life, and makes the tool easy to maintain.
FOR PRECISE GUIDANCE. The ergonomic handle not only ensures you have a firm grip on the power tool, it also enables you to make precise cuts and guide them along marked lines. The quiet running and low vibration of the machine allows you to make precise cuts comfortably.
HIGHLY POWER-EFFICIENT. With the STIHL 2-MIX engine, you can reduce exhaust emissions and fuel consumption, and therefore operating costs. This 2-stroke engine is low-maintenance and uses fuel efficiently even at high power levels. Use a mixture of petrol and engine oil as fuel. The STIHL 2-MIX engine complies with the strict EU Stage V emissions directive.
Technical Data
| Displacement | 66.7 cm³ |
| Power | 3.20 kW |
| Engine power | 4.40 HP |
| CO2 | 747 g/kWh |
| Device weight without refuelling | 9.6 kg 1) |
| Cutting disc diameter | 300 mm |
| Max. cutting depth | 100 mm |
| Device length with cutting disc | 67.5 cm |
| Sound pressure level | 98 dB(A) 2) |
| Sound power level | 109 dB(A) 3) |
| K-value (sound pressure level) | 2 dB(A) 4) |
| K-Factor (Sound power level) | 2 dB(A) 4) |
| Vibration level, left | 3.9 m/s² |
| Vibration level, right | 3.9 m/s² |
1)without cutting disc2)Measurement according to ISO 194323)Measurement with cutting discs in the cut according to EN 60745-2-224)K value according to Directive 2006/42/EC
The engine requires a mix of petrol and engine oil. Simply mix a Stihl 50:1 two-stroke engine oil with unleaded (95 octane) petrol. The simplest method is using a standard 5 litre fuel canister and to add 0.1 litres (100 ml) of Stihl HP 2 stroke oil, close and thoroughly shake the canister and the mix is ready to use.
For this machine we recommend either Stihl HP, HP Ultra or HP Super engine oil.
Model: TS 410 / TS410
