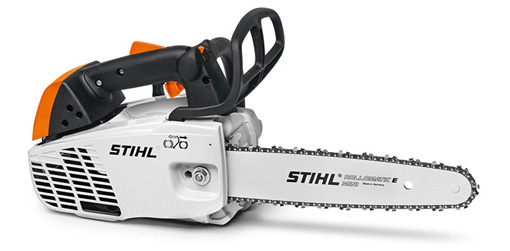

Stihl – MS 194 T – Top Handle Petrol Chainsaw

ONLY AVAILABLE TO QUALIFIED TREE SURGEONS. CERTIFICATE MUST BE PRESENTED ON COLLECTION.

MS194T (Stihl 2-MIX) 1.9hp top handle petrol chainsaw with 12/14″ bar.

The MS 194 T is a brand new, middle of the range, top-handle chainsaw from STIHL. With a large 31.8cc 2-MIX engine, this new arborist saw boasts 9% more power (1.4kW) and 7% more torque (1.5Nm) than the previous MS 193 TC-E.

It also comes fitted with a ¼ P chain for a quick cut. There is also a diagnostic port for easy and simple diagnosis. This saw is well-suited to deadwood removal, reductions and crown lifts as well as taking down medium-sized trees.

Any questions? Need assistance? Call our helpline on 01603 756128

Product Details



Displacement cm³ 31.8
Power output kW/bhp 1.4/1.9
Weight kg 1) 3.3
Power-to-weight ratio kg/kW 2.4
System weight kg 2) 3.67 / 3.73
CO2 g/kWh 896
Sound pressure level dB(A) 3) 100
Sound power level dB(A) 3) 112
Vibration values left/right m/s² 4) 3.6/3.6
Tank volume l 0.27
Bumper spike Polymer spike
Sprocket - number of teeth 8 Z
Cylinder 4 channel / chrome
Oil pump Non-adjustable ,Side-chain tension
Filter Standard filter
Sprocket Sprocket profile,Sprocket profile
Chain tensioning Side-chain tension,Side-chain tension
Anti vibration system AV system
Filler cap Tool-free fuel cap
Chain pitch 1/4"P
Starting system Recoilless ignition / Manual fuel pump / ErgoStart / Standard starter handle
EPA Certified fuel consumption l/h 0.632
Oil tank volume cm3 220
  1.  Without fuel, without bar and chain
  2.  Unfueled, with guide bar and saw chain
  3.  K-factor according to DIR 2006/42/EC = 2.5 dB (A)
  4.  K-factor according to DIR 2006/42/EC = 2m / s ²

The engine requires a mix of petrol and engine oil.  Simply mix a Stihl 50:1 two-stroke engine oil with unleaded (95 octane) petrol. The simplest method is using a standard 5 litre fuel canister and to add 0.1 litres (100 ml) of Stihl HP 2 stroke oil, close and thoroughly shake the canister and the mix is ready to use.

For this machine we recommend either Stihl HP or Stihl HP Ultra engine oil.
