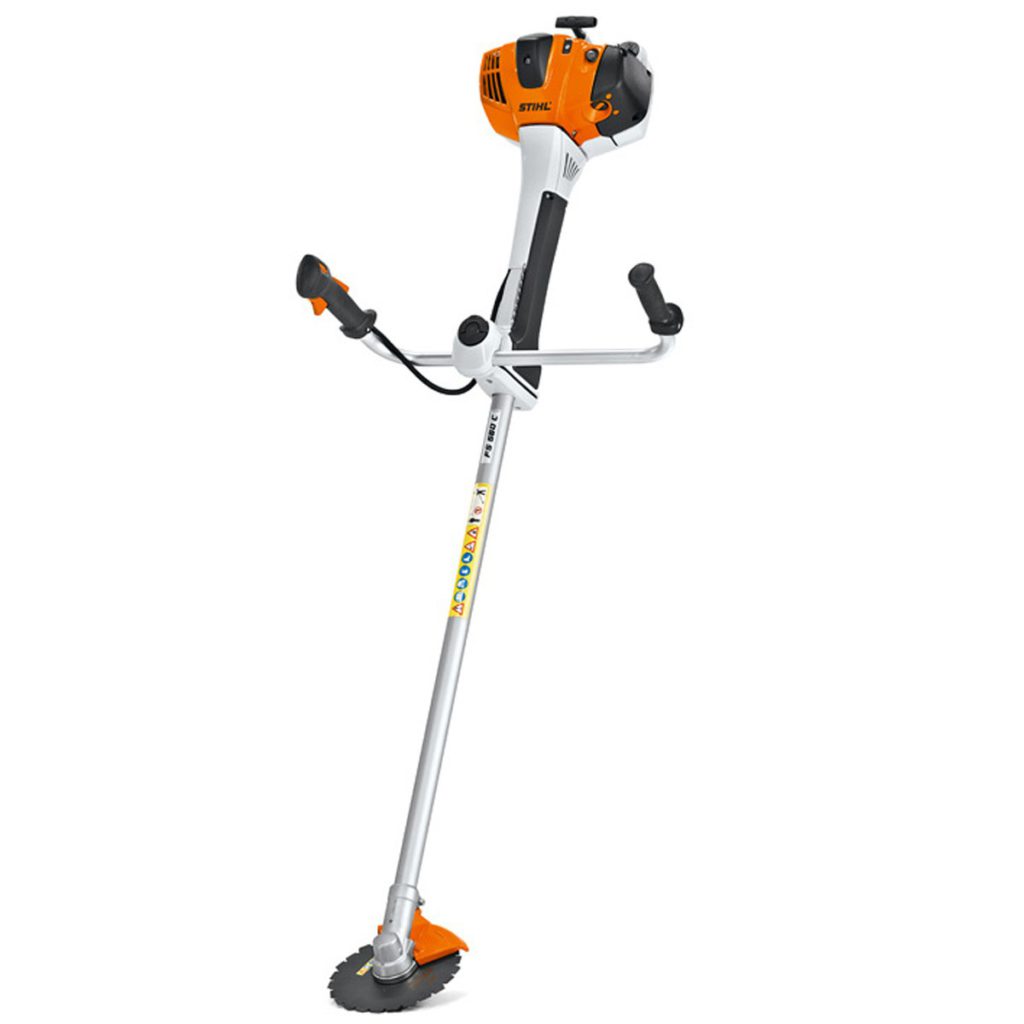

Stihl – FS 561 C-EM – Petrol Clearing Saw

SKU: 41482000146

£1,203.99 inc VAT/£1,003.33 ex VAT

FREE delivery to UK mainland

FS 561 C-EM (Stihl 2-MIX) 3.8hp petrol clearing saw.

This machine is supplied with a circular saw blade.

Top of the range with extraordinary power and robust design. The FS 561 C-EM clearing saw with STIHL M-Tronic and ErgoStart is a sound choice for professionals. Low vibration levels due to the four-point anti-vibration system. With simple start logic, stop button and fully electronic M-Tronic engine management as standard.

Any questions? Need assistance? Call our helpline on 01603 756128

Product Details

Standard Features

STIHL M-Tronic

This fully electronic engine management system adjusts ignition timing and fuel metering in all operating modes. It also takes external conditions such as temperature, altitude and fuel quality into account. It ensures consistent engine performance, a constant maximum speed and superb acceleration. M-Tronic makes manual carburettor adjustments unnecessary. Thanks to electronic cold/warm start recognition, now there is only one start position on the combi-lever. The engine starts after fewer pulls and with no change of position, and can immediately accelerate up to speed - even after a cold start. M-Tronic also remembers the settings from the last time the tool was used. So when external conditions are the same, optimal engine performance is available every time you start up again.

STIHL ErgoStart (E)

STIHL ErgoStart cuts the effort required to start the tool by half, while the starter cord can be pulled at just one third of the normal force. A coil spring between the starter cord and the crankshaft smoothes out force peaks, making them virtually undetectable through the cord itself.

Reduced-Emission Engine Technology

2-stroke engine with stratified charge. A fuel-free layer of air is created between the burned charge in the combustion chamber and the fresh charge in the crankcase, reducing the amount of fuel lost during the charge cycle. This results in more power with a lower weight, up to 20% lower fuel consumption than regular 2-stroke engines and significantly reduced exhaust emissions.

Bike Handle

When used in conjunction with a harness, the bike handle enables a smooth mowing action. The bike handle allows the machine to be easily guided, making it ideal for working on large areas and thus reducing fatigue.

ADVANCE Forestry Harness

Great freedom of movement thanks to the freely suspended leg protection. Extremely ergonomic for forestry applications involving circular saw blades. Very light. Tool bag also available.

Compensator

This controller in the carburettor prevents the fuel-air mixture getting richer as the air filter becomes clogged. The correct quantity of fuel is delivered to the carburettor depending on the quantity of air passing through the air filter. This keeps the fuel/air ratio in the combustion mixture constant and hence also the engine power. The filter doesn't need to be cleaned until an appreciable drop in power occurs.



Performance kW 2.8
Performance PS 3.8
Capacity cm3 57.1
Weight kg 1) 10.2
Sound pressure level with mowing head dB(A) 2) 101
Sound power level dB(A) 2) 117
Vibration value, left with mowing head m/s2 3) 3.7
Vibration value, right with mowing head m/s2 3) 3.7
Total length cm 4) 176
Tank volume l 0.99
Displacement cm³ 57.1
Power output kW/bhp 2.8/3.8
Weight kg 5) 10.2
Standard cutting tool Circular saw blade 225-24
  1. Without fuel, cutting tool and without protection
  2. K-factor according to DIR 2006/42/EC = 2.5 dB (A)
  3. K-factor according to DIR 2006/42/EC = 2m / s ²
  4. Without cutting tool
  5. Without cutting tool and deflector

The engine requires a mix of petrol and engine oil.  Simply mix a Stihl 50:1 two-stroke engine oil with unleaded (95 octane) petrol. The simplest method is using a standard 5 litre fuel canister and to add 0.1 litres (100 ml) of Stihl HP 2 stroke oil, close and thoroughly shake the canister and the mix is ready to use.

For this machine we recommend either Stihl HP or Stihl HP Ultra engine oil.
