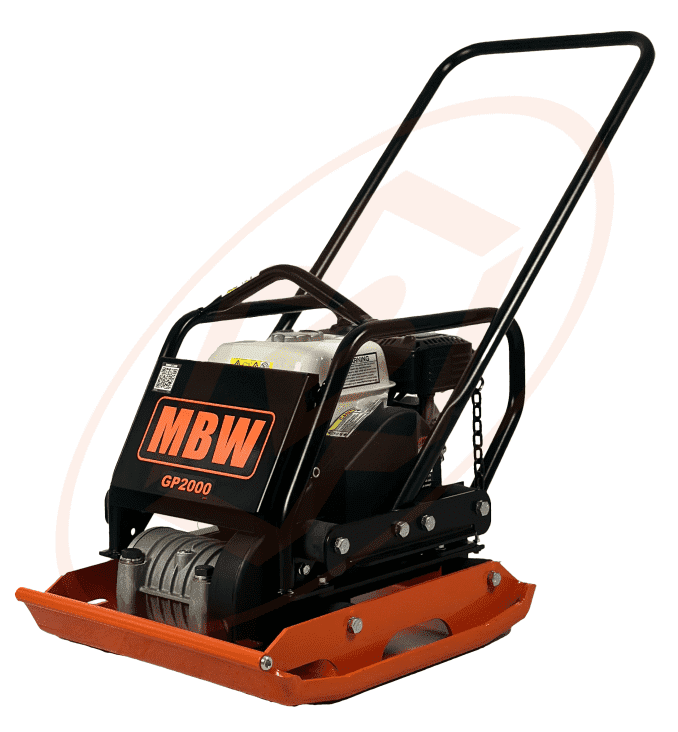

MBW GP2000 20 Inch Vibratory Plate Compactor

Product Details

Honda GX160 Engine

Lift cage as standard

Optional wheel kit, water kit and UHMW paving pad for placing interlocking paving stone/brick/block - please select from drop-down menus

Plate Size: 51cm x 56cm (20" x 22")

Operating Weight: 75kg (165lbs) / with water kit = 76kg (168lbs) without water / 88kg (193lbs) full water

Amplitude: 2.11mm (.083 in) / with water kit = 2.08mm (.082 in) without water / 1.80mm (.071 in) full water

Centrifugal Force: 14.5kN (3250lbs) / with water kit = 11kN (2475lbs)

Water Tank Capacity (if selected): 11.3l (3 gal)

Noise Levels: 84-94 dBA

The GP2000 vibratory plate compactor is designed to provide optimal productivity in compaction of sands and gravel. The stress relieved steel base plates are crack resistant and provide long wear. Aluminium exciter housing dissipates heat rapidly and custom lubricants preserve bearing and seal integrity.

The GP2000’s frequency, amplitude, centrifugal force and mass are adjusted to provide optimal productivity in the compaction of sands and gravel. The GP2000 is capable of achieving excellent densities on lifts of granular soils up to 12″ (31 cm)*.

MBW’s AP2000 was the first vibratory plate compactor specifically designed for asphalt applications. Frequency, amplitude, centrifugal force and mass are all established at optimal levels for maximum productivity on asphalt.
