MBW Europe GPR44 14 Inch Reversible Vibratory Plate Compactor

Product Details

Honda GX160 engine

Wheel kit supplied as standard

Optional water kit & neoprene paving pad for placing interlocking paving stone/brick/block - please select from drop-down menus

Hydraulic direction system with adjustable speed and the ability to spot compact

Operating Weight: 80kg (176lbs)

Centrifugal Force: 15 kN (1530 kgf)

Travel Speed: 25 m/min (82 ft/min)

Compaction Rate: 1389 m2/hr (14950 ft/hr)

Vibration Frequency: 6000 vpm (100 Hz)

Compaction Depth: Up to 56cm (22") - Clean sand, optimum moisture. MBW recommends that lifts not exceed 12”

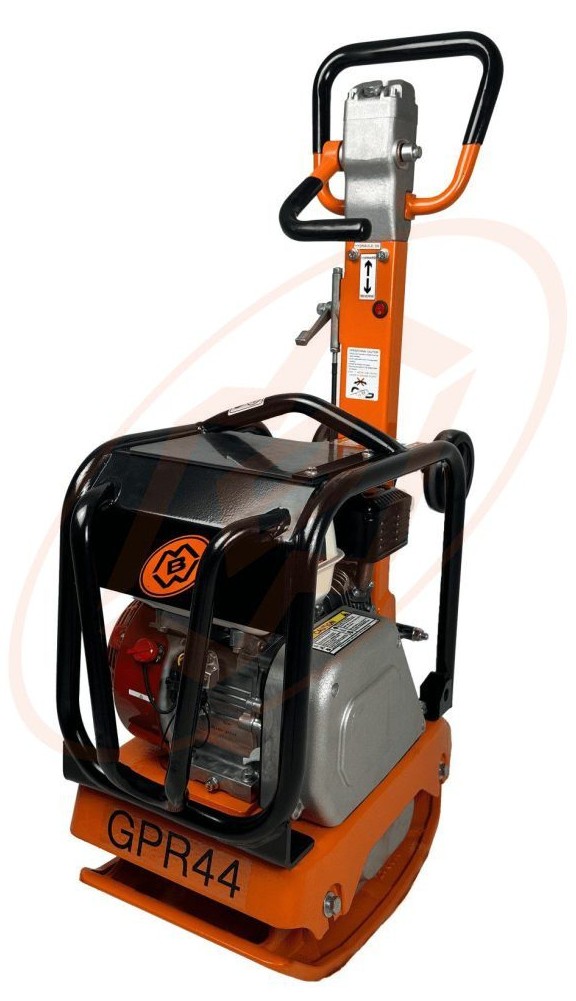

The GPR44 reversible vibratory plate compactor offers forward and backward movement with adjustable speeds and the ability to spot compact. A sturdy roll cage protects the GX160 Honda engine and includes a centrally located balanced lifting hook. The handle can be locked upright for easy storage and transport with a wheel kit supplied as standard. Optional water kit and neoprene paving pad for placing interlocking paving stone/brick/block available.

The GPR44 reversible vibratory plate compactor excels in reducing hand arm vibration (HAV), thanks to standard shock-mount assemblies, enhancing operator confidence and safety. Efficient operation with a centrifugal clutch and belt tensioner, eliminating frequent engine and belt adjustments.

Mobility is effortless thanks to integral wheel kits for easy transport around job sites. We prioritize quality control with rigorous run-testing before delivery. These versatile plates offer forward, reverse, and spot compaction modes, with an ergonomically designed throttle lever for precise control. Engine control is conveniently placed on the handle assembly and a robust roll cage safeguards the engine. The cast aluminum belt guard efficiently dissipates heat, keeping clutch and belt assemblies cool during operation.
