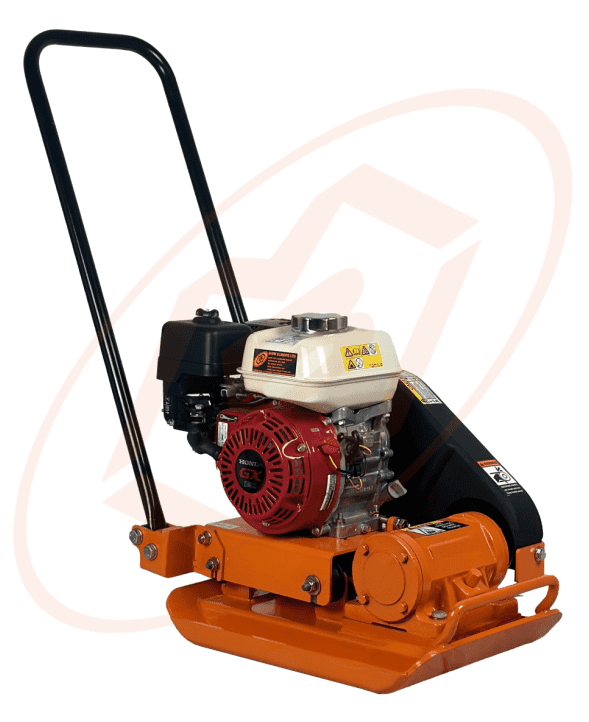

MBW Europe GP1600 16 Inch Vibratory Plate Compactor
View LargerThe MBW GP1600 is a robust all-purpose plate compactor with 400mm wide base plate. Powered by a Honda GX120 engine it is reliable and offers excellent performance and productivity. The upright handle gives the operator maximum control to ensure safe and efficient operation on the job site.
The water kit and mat kit can only be added at the time of purchase.
Any questions? Need assistance? Call our helpline on 01603 756128
Product Details
Lightweight, high performance plate design
Low maintenance exciter unit
Robust construction for increased durability
Ideal for small to medium compaction applications
Honda GX120 as standard (GX160 engine available - please contact us for details)
Lightweight, high performance plate design
Upright handle design for maximum control
Optional water spray kit, neoprene paving kit and low vibration handle available - select from drop-down menus
Plate Size = 41cm x 51 cm (16" x 20")
Operating Weight = 64kg / 141 lbs / with water kit = 66.7kg (147lbs) without water / 71kg (157lbs) full water
Amplitude = .094" (2.39 mm)
Force = 1,030kfg
Speed = 20-25 m/min
The MBW GP1600 is a robust all-purpose plate compactor with 400mm wide base plate. Powered by a Honda GX120 engine it is reliable and offers excellent performance and productivity. The upright handle gives the operator maximum control to ensure safe and efficient operation on the job site.
The GP1600 features a low maintenance exciter unit and robust construction for increased durability and reduced maintenance needs. The lightweight, high-performance design makes the GP1600 an excellent choice for small to medium applications. They are ideal for use on granular soils and asphalt, for building patios, driveways, block paving, garage extensions etc. The GP1600 can compact lift depths of up to 10 inches (25cm). Optional water spray kit and neoprene mat kit are available for added versatility and convenience.
