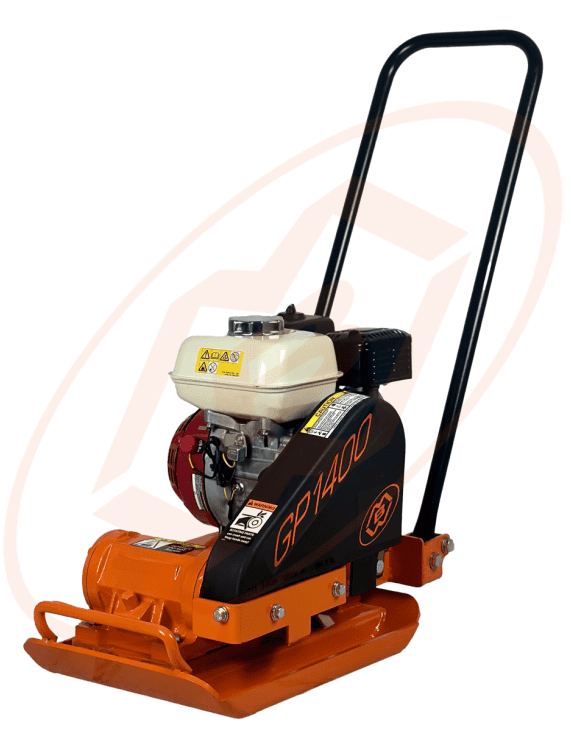

MBW Europe GP1400 14 Inch Vibratory Plate Compactor

Product Details

Lightweight, high performance plate design

Low maintenance exciter unit

Robust construction for increased durability

Ideal for small to medium compaction applications

Honda GX120 as standard (GX160 engine available - please contact us for details)

Lightweight, high performance plate design

Upright handle design for maximum control

Optional water spray kit, neoprene paving kit and low vibration handle available - select from drop-down menus

Plate Size = 13.7" x 20.5"

Operating Weight = 60kg (132 lbs) / with water kit = 62.7kg (138 lbs) without water / 67kg (148lbs) full water

Amplitude = .094" (2.39 mm)

Force = 1,030kfg

Speed = 20-25 m/min

The MBW GP1400 is a robust all-purpose plate compactor with 350mm wide base plate. Powered by a Honda GX120 engine it is reliable and offers excellent performance and productivity. The upright handle gives the operator maximum control to ensure safe and efficient operation on the job site.

The GP1400 features a low maintenance exciter unit and robust construction for increased durability and reduced maintenance needs. The lightweight, high-performance design makes the GP1400 an excellent choice for small to medium applications. They are ideal for use on granular soils and asphalt, for building patios, driveways, block paving, garage extensions etc. The GP1400 can compact lift depths of up to 10 inches (25cm). Optional water spray kit, neoprene mat kit and low vibration handle are available for added versatility and convenience.
