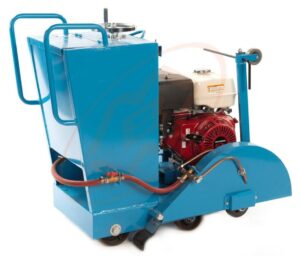

MBW Europe CS500 Floor Saw
View LargerThe CS500 design incorporates a strategically positioned water tank that shifts the centre of gravity when lowering the blade, ensuring optimal pressure for maximum cutting efficiency. Additionally, recessed rear wheels simplify cutting along open trenches, while a rigid front pointer aids in precise, straight cuts. The equipment guarantees easy and accurate handling, coupled with straightforward maintenance procedures, enhancing overall user experience and operational efficiency.
Any questions? Need assistance? Call our helpline on 01603 756128
Product Details
Design of the water tank changes the centre of gravity of the machine when lowering the blade for cutting, giving it just the right amount of pressure to the blade for maximum cutting effect.
Recessed rear wheels making a cut long an open trench simple
Rigid front pointer to assist straight accurate cut
Easy and accurate handling
Easy maintenance
| Engine | Honda GX390 13HP (9,6 Kw) |
| Starter | Recoil |
| Max blade | 500mm |
| Blade bore | 25.4mm |
| Max depth | 180mm |
| Blade speed | 2600 rpm |
| Drive Belts | 4 |
| Water Tank | 70L |
| Waterflow | Dual Sides of the blades |
| Dimension | L 1088 x W 580 x H 925mm |
| Dry weight | 140kg |
| Max weight | 220kg |
| Sound pressure | 89 LPA (dB) |
| Sound energy | 2608 rpm105 LWA (dB) |
| Hand arm vibration | 4.22m/s² |
The CS500 design incorporates a strategically positioned water tank that shifts the centre of gravity when lowering the blade, ensuring optimal pressure for maximum cutting efficiency. Additionally, recessed rear wheels simplify cutting along open trenches, while a rigid front pointer aids in precise, straight cuts. The equipment guarantees easy and accurate handling, coupled with straightforward maintenance procedures, enhancing overall user experience and operational efficiency.
