Lumag – RP-i12 Forward Plate Compactor
SKU: RP-i12
£593.99 inc VAT/£494.99 ex VAT

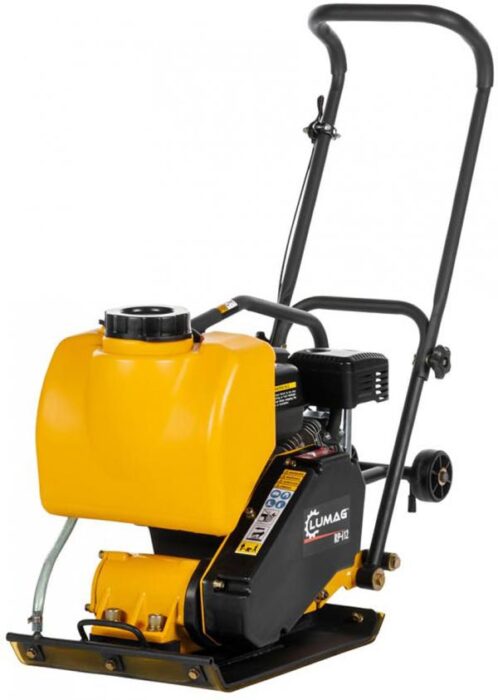

The Lumag RPi12 compactor wacker plate comes complete with water tank, transport wheels and rubber mat. It is perfect for use with tarmac or dust suppression. The machine is powered by an excellent Loncin G200 engine which is easy to start and faultlessly reliable. The machine is surrounded by a frame protecting the engine and other workings.
Any questions? Need assistance? Call our helpline on 01603 756128
Product Details
Equipment features:
- The forward running vibration plate is particularly suitable for paving work, repair work in pathways, gardening and landscaping.
- The water sprinkling is indispensable when compacting very dusty surfaces, as well as for all asphalt and tar work! The water is distributed in front of or under the plate through a nozzle pipe. The amount of water can be regulated and the tank can be removed.
- Foldable handle – compact size for transport and storage.
- Protective grille on the exhaust, handle dampened against vibrations.
- Robust, long-lasting base plate for particularly precise work.
- Equipped with V-belts protected on all sides.
- Protective frame
| Motor / drive | 4-stroke OHV petrol engine |
| Engine power | 4.1 kW at 3,000 rpm |
| Displacement | 196 cc |
| Tank capacity (fuel) | 3.6 l |
| Engine oil | 0.6 l |
| Plate size (L / W) | 500 x 370 mm |
| frequency | 70 Hz |
| Centrifugal force | 10.5 kN |
| Area performance | 450 m² / hour |
| Max. Feed | 20 m / min. |
| Vibration shocks | 5,600 vpm |
| Compaction depth | 20 cm |
| Sound power level LWA | 108 dB (A) |
| Operating weight | approx. 73.7 kg |
| Transport weight | approx. 80 kg |
| Packing dimensions (L / W / H) | 750 x 380 x 610 mm |
