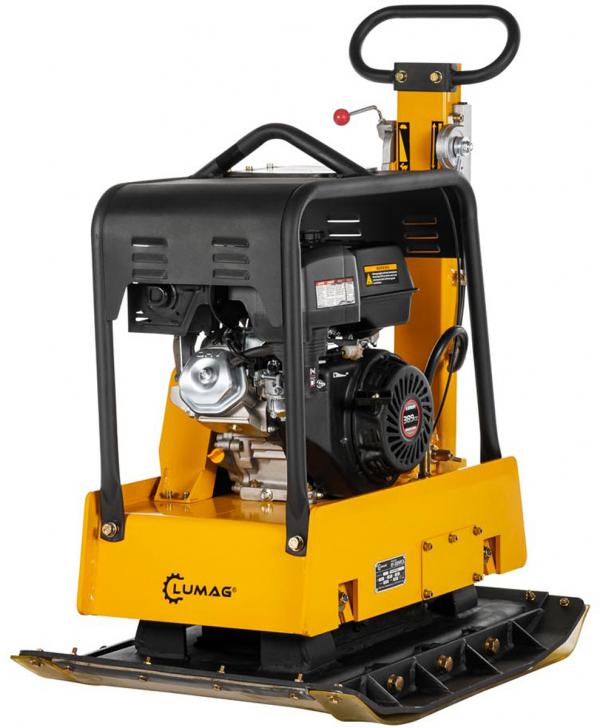

Lumag – RP 300 HPCA Reversible Plate Compactor


£2,278.99 inc VAT/£1,899.16 ex VAT

FREE delivery to UK mainland

The new Lumag RP300-HPCA is a forward/reverse compactor wacker plate. This machine is powerful and manoeuvrable, great for large paved areas, trench and ground works. Fitted with the excellent Loncin engine (A Honda can be fitted at extra cost). The machine is easily controlled from the rubber mounted  handle with both throttle and directional controls close at hand.  The engine cover frame has an integral lifting eye. As with all of our compactor plates you will need to purchase the transport wheels/axle and paving mat separately.

Any questions? Need assistance? Call our helpline on 01603 756128

Product Details

Equipment features:

  • Compact, powerful vibratory plate with forward and reverse flow and excellent compaction properties.
  • A real all-rounder for medium to heavy compaction work especially in gardening and landscaping, cable and paving construction
  • Stable construction, the engine is protected by a heavy-duty frame.
  • Stepless regulation of the movement in both directions.
  • Two base plate sizes according to the application.
  • Equipped with V-belts protected on all sides, compact protective frame.
Motor / drive 1-cylinder 4-stroke OHV engine
Displacement 389 cc
Engine power 8.2 kW at 3,600 rpm
Fuel content 6.5 l
Plate size (LxW) 830 x 480 mm
Extension plates (LxW) 830 x 100 mm
frequency 80 Hz
Centrifugal force 38 kN
Area performance 650 m² / hour
Max. Feed 18 m / min.
Vibration shocks 4,810 vpm
Compaction depth 90 cm
Max. Permissible inclination of the motor 20 °
Sound power level LWA 108 dB (A)
Operating weight 262 kg
Transport weight (net / gross) 268/281 kg
Packaging dimensions including pallet base (LxWxH) 905 x 505 x 1130 mm
Packaging dimensions cardboard box (LxWxH) 905 x 505 x 1030 mm
