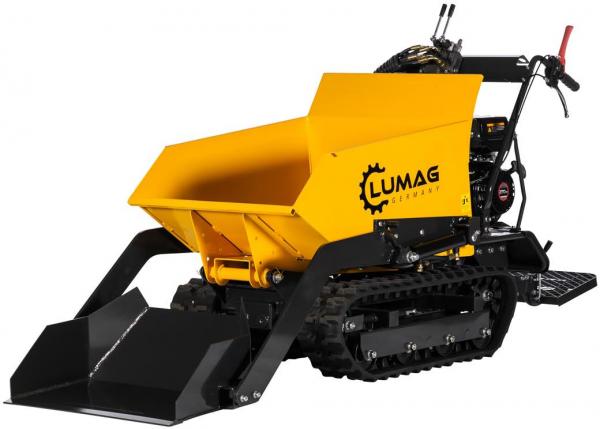

Lumag – MD500H PRO-S Minidumper

SKU: MD500HPRO-S

£4,224.99 inc VAT/£3,520.83 ex VAT

FREE delivery to UK mainland

The Lumag MD500H PRO mini dumper is based on the original Lumag MD500H configuration . It offers the same reliable, easy starting Loncin engine and simple drive system but with a “dumper style” tipping butt that is more suited for shifting sand, soils etc. Tipping is fully mechanized by the hydraulic ram. The machine is still only 700mm wide and great to get in those hard to reach areas.

The new Pro model now has a innovative Japanese gearbox making a huge difference in usability and efficiency. The chassis has been further improved increasing ground clearance and off road ability.

Any questions? Need assistance? Call our helpline on 01603 756128

Product Details

  • MD-500HPROS – the versatile petrol-powered mini crawler dumper with tipping hydraulics and shovel.
  • As the perfect helper for all transport work, the MD-500HPROS provides valuable services in many industries for a wide variety of activities.
  • The MD-500HPROS easily transports loads of up to 500 kg.
  • An extremely narrow design and compact dimensions bring the MD-500HPROS safely to the place of use even through narrow gates and paths.
  • Bulk and piece goods are emptied using a hydraulic tipping skip.
  • The massive steel construction and the powerful hydraulic cylinder in combination with the simple, intuitive control make the MD-500HPROS the ideal helper.
  • With standing platform for fatigue-free work.
Engine 1-cylinder 4-stroke OHV LONCIN engine
Displacement 270 cc
Power 6.0 kW
Operating speed 3,000 rpm
Starting device Reversing starter
Drive Gear transmission
Steering Steering brake
Tilting device Hydraulic, tiltable forwards
Tilting container (LxWxH) 950 x 660 x 370 mm
Shovel (LxWxH) 350 x 660 x 200 mm
Dead weight / shipping weight 345 kg
Ground clearance 105 mm
Load max. 500 kg
Capacity 212 l
Hydraulic pump 12l / min (at 3,000 rpm)
Working pressure max. 200 bar
Transmission 6 forward / 2 reverse gears
Dimensions (LxWxH) 2260 x 820 x 1220 mm
