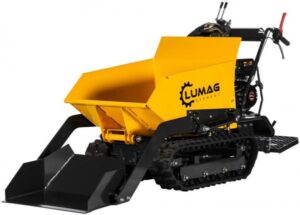

Lumag – MD500H PRO Minidumper
SKU: MD500HPRO
£3,368.99 inc VAT/£2,807.49 ex VAT
The Lumag MD500H PRO mini dumper is based on the original Lumag MD500H configuration . It offers the same reliable, easy starting Loncin engine and simple drive system but with a “dumper style” tipping butt that is more suited for shifting sand, soils etc. Tipping is fully mechanized by the hydraulic ram. The machine is still only 700mm wide and great to get in those hard to reach areas.
The new Pro model now has a innovative Japanese gearbox making a huge difference in usability and efficiency. The chassis has been further improved increasing ground clearance and off road ability.
Any questions? Need assistance? Call our helpline on 01603 756128
Product Details
- MD-500HPRO – the versatile petrol-powered mini crawler dumper with tipping hydraulics.
- As the perfect helper for all transport work, the MD-500HPRO provides valuable services in many industries for a wide variety of activities.
- The MD-500HPRO easily transports loads of up to 500 kg.
- An extremely narrow design and compact dimensions bring the MD-500HPRO safely to the place of use, even through narrow gates and paths.
- Bulk and piece goods are emptied using a hydraulic tipping skip.
- The massive steel construction and the powerful hydraulic cylinder in combination with the simple, intuitive control make the MD-500HPRO the ideal helper.
| Engine | 1-cylinder 4-stroke OHV LONCIN engine |
| Displacement | 270 cc |
| Power | 6.0 kW |
| Operating speed | 3,000 rpm |
| Starting device | Reversing starter |
| Drive | Gear transmission |
| Steering | Steering brake |
| Tilting container (LxWxH) | 950 x 660 x 370 mm |
| Own weight | 238kg |
| Ground clearance | 105 mm |
| Load max. | 500 kg |
| Capacity | 212 l |
| Tilting device | Hydraulic, tiltable forwards |
| Hydraulic pump | 12l / min (at 3,000 rpm) |
| Working pressure max. | 200 bar |
| Transmission | 6 forward / 2 reverse gears |
| Dimensions (LxWxH) | 1708 x 710 x 975 mm |
