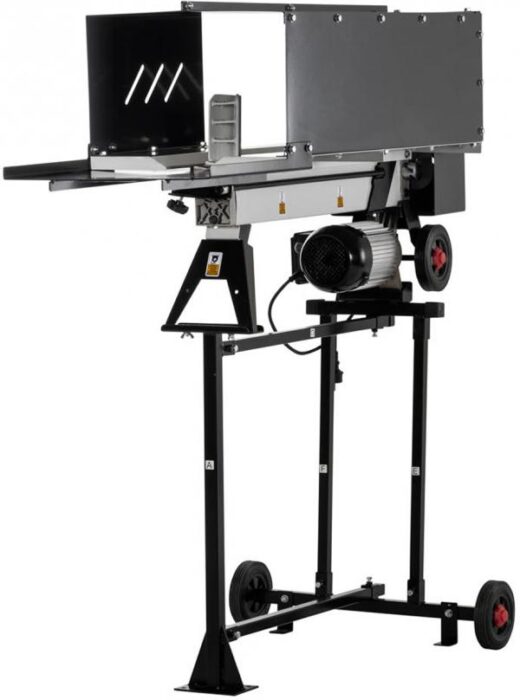

Lumag – HOS5N 5 Ton Log Splitter 230v

The machine features a robust steel frame and powerful electric motor powering the 5 ton rated hydraulic ram. Efficiency is improved by both a “return stop” preventing the hydraulic cylinder having to travel its full stroke before having to return for its next log in some cases doubling the effective working speed! This feature is not fitted to some inferior machines. The splitter also has a working table on the end of the machine preventing the logs falling on the floor. Safety is improved with the updated guarding and two-handed operation.

Any questions? Need assistance? Call our helpline on 01603 756128

Product Details

  • Horizontal hydraulic splitter with up to 5 t splitting force.
  • Stable, torsion-resistant steel construction.
  • 2-hand safety operation.
  • Standard driving device and handle for easy transport.
  • With return limiter ! Shorter pieces of wood can also be split without wasting time. Simply select the appropriate length by moving the adjusting screw.
operating voltage 230V / 50Hz
Motor power P1 / P2 1.5 kW / 0.989 kW
Operating mode S3 80%
Engine speed 2,820 1 / min
Protection IP54
Splitting force 5 t
Spaltgutlänge 150 - 520 mm
Splitting diameter 50 - 250 mm
Oil flow Max. 3.2 l (HLP46)
Hydraulic pressure 18 MPa
Forward speed about 3.2 cm / s
Return speed about 6.5 cm / s
Weight (net / gross) 59/63 kg
Packaging dimensions (L / B / H) 960 x 380 x 510 mm
