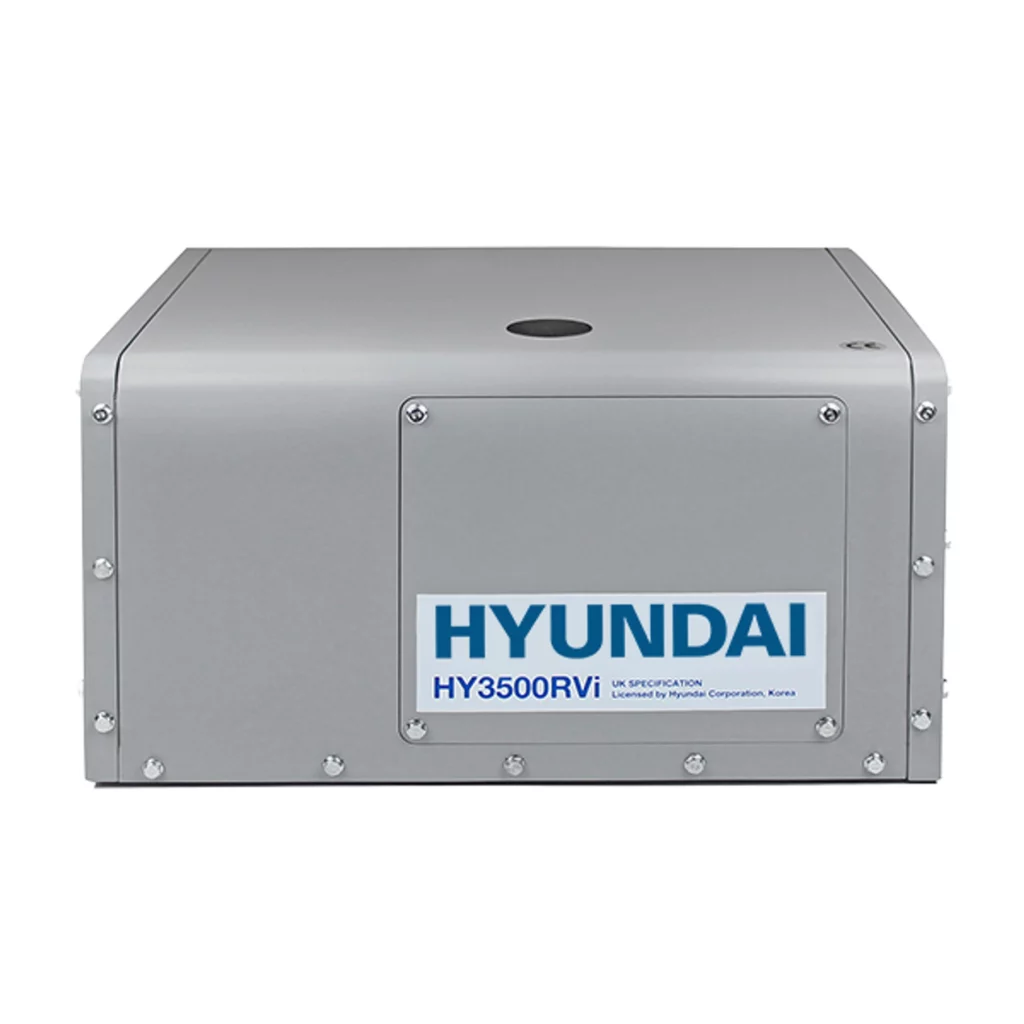

Hyundai – HY3500RVi – 3.5kW Motorhome Leisure Generator
SKU: HY3500RVI
£2,601.99 inc VAT/£2,168.33 ex VAT
The Hyundai HY3500RVi is an inverter generator designed to be mounted underneath a motorhome, sports or welfare vehicle. It can be permanently mounted to the chassis or mounted within a locker on slide out mounts.
OUT OF STOCK, CONTACT US FOR LEAD TIME.
Any questions? Need assistance? Call our helpline on 01603 756128
Product Details
Key Features
- Power - Maximum output 3500w, 230v
- Digital inverter clean power
- Economy - Smart throttle system
- Easy- Remote start/stop
- Low vibration- Triple Anti-vibration mounting system
- Low noise- Double silencer exhaust system
- Complete kit ready to install
- Suitable for Motorhomes, Sportshomes, RVs, welfare vehicles, horse lorries, race trucks, service vans etc.
- Engine oil included (15w40 / 10w40 grade)
- Full UK spares and technical support
- Covered by Hyundai 2 year standard warranty
Specifications
| Model | HY3500RVi |
|---|---|
| Start Method | Electric Start |
| Maximum Output (kW/w) | 3.5/3500 |
| Continuous Output (kW/w) | 3/3000 |
| Voltage Regulation Method | Digital Inverter Regulation |
| Phase | Single |
| Voltage | 230 |
| Connection Method(s) | 230V/13A |
| Rated Speed (RPM) | 2800 - 3600 |
| Frequency (Hz) | 50 |
| Max/Continuous Current (Amps) | 13 |
| Power Factor (Cosφ) | 0.95 |
| Engine Model | IC225 |
| Engine Type | 4-Stroke OHV Air-cooled |
| Engine Size (cc) | 208 |
| Power Output (hp) | 7 |
| Fuel | Petrol |
| Fuel Capacity (L) | 24 |
| Engine Oil | SAE 15W-40 |
| Engine Oil Capacity (ml) | 600 |
| No. of Cylinders | 1 |
| Casing | Closed |
| Noise Level db (A) @ 7m | 58 |
| Gross Weight (kg) | 65 |
| Net Weight (kg) | 46 |
| Fully Assembled Dimensions (H x W x L) (mm) | 545 x 455 x 530 |
| Package Dimensions (H x W x L) (mm) | 730 x 580 x 675 |
| Fuel Type / Power Source | Petrol |
| Product Type | RV Leisure Generator |
| Warranty (years) | 2 |
| Commercial Warranty (years) | 1 |
| Model EAN | 600231974226 |
| In The Box | HY35000RVi, Engine Oil (15w40grade), User Manual, Under-Chassis Mounts, Fuel Tank Mounting Brackets, Extended Fuel Filler Tube With Fittings, 8m Cable and Digital Control Panel, External Silencer, Flexible Connecting Pipe |
