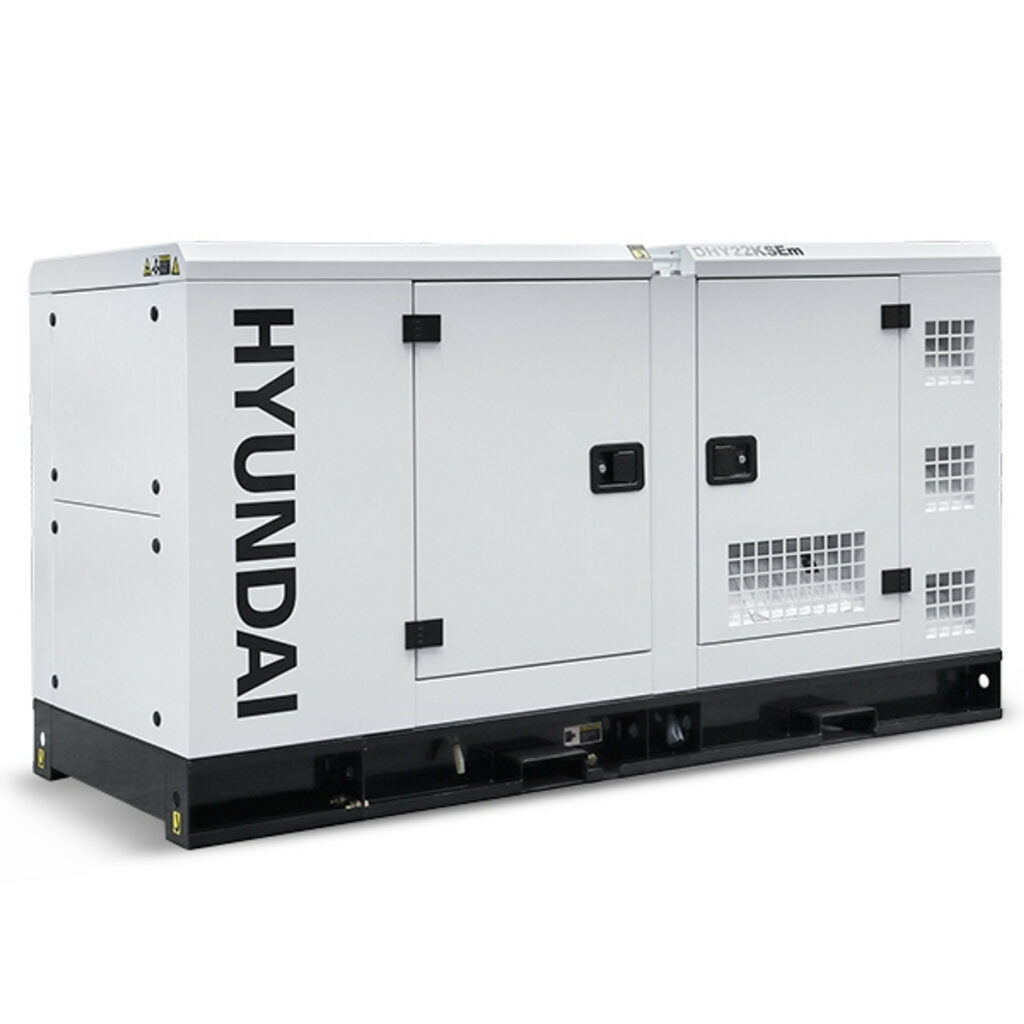

Hyundai – DHY22KSEm – 22kW Diesel Generator

SKU: DHY22KSEm

£8,134.99 inc VAT/£6,779.16 ex VAT

FREE delivery to UK mainland

The DHY22KSEm is a powerful single-phase diesel generator from Hyundai, suitable for powering a large home or office, or a number of site cabins on a construction site.

Powered by an 33hp HY4102 diesel engine, the DHY22KSEm is able to produce a maximum output of 27.5KVA / 22kW backup power and 25KVA / 20kW prime power.

Any questions? Need assistance? Call our helpline on 01603 756128

Product Details

Key Features

  • Single-phase diesel generator: Produces up to 27.5kVA of backup power and 25KVA of prime power
  • Powered by a 1500rpm engine: Extends the lifespan of the generator
  • Fitted with an AVR alternator: Able to produce a clean energy output
  • Silenced generator: Housed in a weather-proof canopy, producing only 66dB at 7m
  • ATS compatible: Automatically transfers power to the generator in the event of a power cut/li>
  • Large fuel tank: For extended running times
  • Peace of mind: Up to 2 year Hyundai warranty* (terms apply)
Specifications

Model DHY22KSEm
Rated/Prime kVA* 25
Rated/Prime kW 20
Max/Standby kVA* 27.5
Max/Standby kW 22
Phase Single
Voltage 230
Connection Method(s) 2 x 230V/32A 1 x 230V/63A Busbar
Rated Speed (RPM) 1500
Frequency (Hz) 50
Max/Continuous Current (Amps) 95.7 / 87
Power Factor (Cosφ) 1
Fuel Type Diesel
Fuel Tank (Litres) 93
Runtime (Hours) @ 100% Load 10
Noise Level @ 1m 75% load (dB) 72
Noise Level @ 7m 75% load (dB) 67
Hyundai Diesel Engine Model HY4102
Power Output (kw) 33
Displacement (CC) 3800
No. of Cylinders 4
Displacement (Litres) 3.8
Recommended Oil Type SAE 15W40
Oil Capacity (Litres) 7.5
