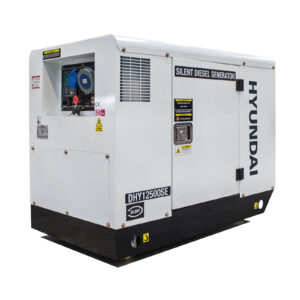

Hyundai – DHY12500SE – 10.0kW Diesel Generator
SKU: DHY12500SE
£3,854.99 inc VAT/£3,212.49 ex VAT
The DHY12500SE is a diesel single-phase backup generator from Hyundai. Ideal for providing your home or business with reliable backup power when the national grid lets you down, this high-quality diesel genset is able to produce up to 12.5kVA.
This generator’s Hyundai twin cylinder air-cooled engine can produce up to 12.5kVA / 10kW backup power, perfect for your peace of mind that you won’t be without power, wifi and heating during a power cut.
Any questions? Need assistance? Call our helpline on 01603 756128
Product Details
Key Features
- Single-phase backup diesel generator: Produces up to 12.5kVA / 10kW of power
- Long-run 60L diesel tank: Saves you having to keep topping up the generaor
- Fitted with an AVR alternator: Produces a smooth, clean energy output
- ATS compatible: Able to automatically transfer power to the enerator in the event of a power cut
- Low noise generator: Produces 65 to 70db @ 7m
- Peace of mind: 1 year / 1,000 hour Hyundai warranty* (terms apply)
Specifications
| Model | DHY12500SE |
|---|---|
| Rated/Prime kVA* | 12.5 |
| Rated/Prime kW | 10 |
| Max/Standby kVA* | 13.75 |
| Max/Standby kW11 | 11 |
| Phase | Single |
| Voltage | 230 |
| Connection Method(s) | Sockets - 1 x 32A, 1 x 63A |
| Rated Speed (RPM) | 3000 |
| Frequency (Hz) | 50 |
| Max/Continuous Current (Amps) | 47.83/43.48 |
| Power Factor (Cosφ) | 1 |
| Fuel Type | Diesel |
| Fuel Tank (Litres) | 50 |
| Runtime (Hours) @ 100% Load | 12 |
| Noise Level @ 1m 75%81.5 load (dB) | 81.5 |
| Noise Level @ 7m 75% load (dB) | 70 |
| Hyundai Diesel Engine Model | HY290F |
| Power Output (hp) | 20 |
| Engine Displacement (CC) | 954 |
| No. of Cylinders | 2 |
| Recommended Oil Type | 15w40 / 10w40 |
| Oil Capacity (Litres) | 3 |
| Oil Filter Part No. | 3049050901800 |
| Aspiration | Natural |
| Fuel Regulation/Governor System | Mechanical |
| Fuel Filter Part No. | 3049051001000 |
| Cooling | Forced Air-Cooled |
| Breakers | Yes |
| Alternator Type | Brushed |
| Voltage Regulation | AVR |
| Air Filter Part No. | 3049050700303 |
| Net Weight (kg) | 270 |
| Gross Weight (kg) | 290 |
| Wheel Kit? | Yes |
| Dimensions L x W x H (mm) | 1175 x 695 x 1050 |
| Battery (Ah) | 45 |
| ATS / MTS Compatible | Yes |
| Control Panel | HJ-103A |
| Model EAN | 600231973526 |
| Warranty | 1 Year / 1000 Hours* (Terms apply) |
