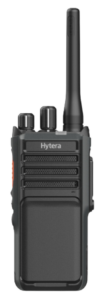

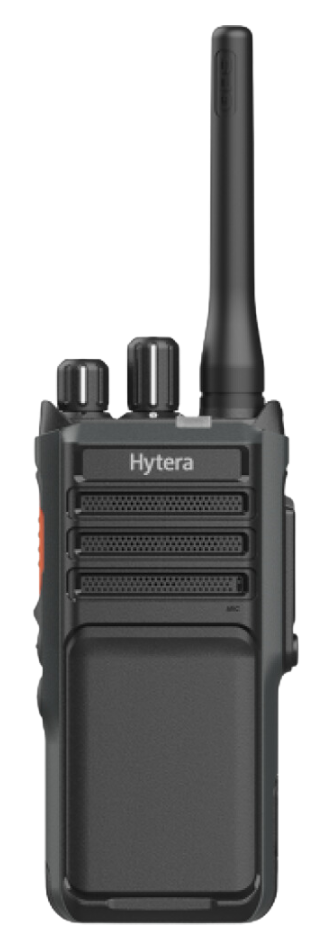

Hytera HP505 Digital Radio

Product Details

This product is supplied without charger (as standard) but one can be selected from the drop-down menu. This item's standard package contains:

• Radio
• Battery (BL1508)
• Standard UHF (AN0435H13) / VHF (AN0160H13) antenna / GPS models: UHF (AN0435H21) / VHF (AN0155H08) antenna
• Belt clip (BC48)
• Wrist strap (RO03)
• User manual

Additional items can be selected when you add this item to your order. For full list of antennas and other accessories please contact us.

Hytera HP505 two-way radios offer a reliable voice communication solution in professional environments such as stadiums, schools, hospitals, industrial estates, offices and more.

HP505 features the latest hardware and software features for DMR radios, including USB-C charge and programming port, IP67 and MIL-STD-810G certification, improved sensitivity for extended communication range, and GPS and Bluetooth as factory options.

Technical data

• Frequency range: UHF: 400-470 MHz / VHF: 136-174 MHz
• RF power output: UHF: 1W/4W / VHF: 1W/5W
• Up to 256 channels / 16 zones / 16 channels per zone
• Channel spacing analogue: 25/20/12.5 kHz
• Channel spacing digital: 12.5 kHz
• Ingress protection: IP67
• Meets MIL-STD-810 H standard

General Features

• GPS models - GPS/GLONASS with built-in GPS antenna (hardware option)
• Programmable buttons: 2
• Bluetooth models - Bluetooth BT 5.2
• VOX
• Channel & zone voice notification
• Third party API
• Microphone automatic gain control
• AI based noise cancellation
• Type-C USB port for charging and programming
• Bluetooth models - Programming via Bluetooth
• Bluetooth models - Programming by HyTool App via BT (FW V3.0 and higher)

Digital Features

• Individual call, Group call, All call
• Number of contacts: 2048
• Predefined text messages: 256 characters
• E2E basic encryption
• Over-the-air encryption (requires FW V3.0 or higher)
• Authentication
• Emergency alarm/call
• Alarm trigger: programmable button or Lone Worker
• Roaming (optional license)
• Priority interrupt (optional license)
• Remote monitor, enable & disable, radio check (optional license)
• Over-the-air programming (OTAP) (requires FW V3.0 or higher)
• Pseudo trunk
• XPT trunking (single site) (optional license)
• Broadcast Call (FW V3.0 and higher)
• Unaddressed call (FW V3.0 and higher)
• Open Voice Channel Mode (OVCM) (FW V3.0 and higher)

Analogue Features

• Emergency alarm/call
• Alarm trigger: programmable button or Lone Worker
• Scrambler
• 2 Tone, HDC1200, 5 Tone
• CTCSS/CDCSS
• Channel auto scan
• Squelch
• Timeout timer

Please note that a license may be required to use this item legally. Please contact us for options.
