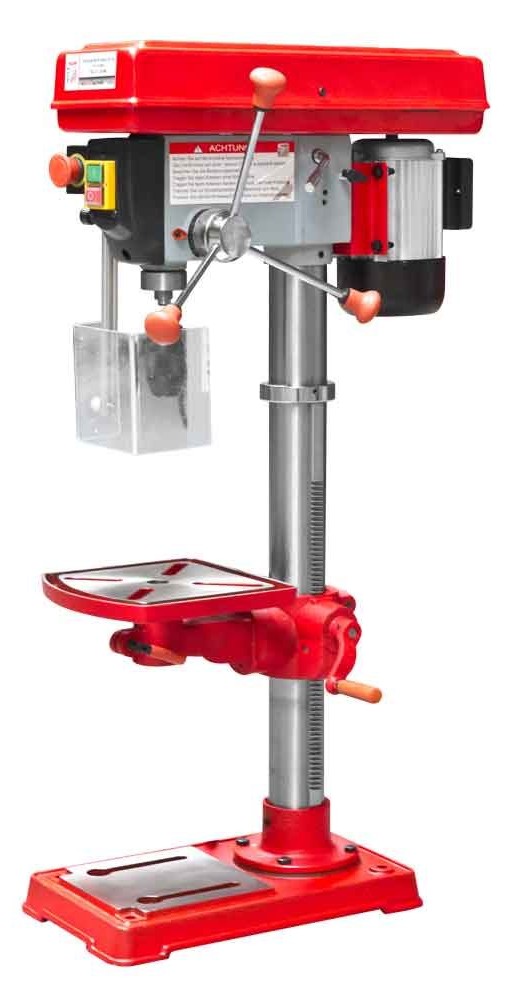

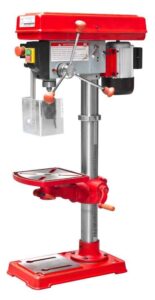

Holzmann – SB4116HM Drill Press
View LargerSKU: SB4116HM
£430.99 inc VAT/£359.16 ex VAT
- Features solid, polished base with T-nuts
- Aluminum motor according IP54
- Torsion-resistant, solid and polished steel column
- The worktable is tiltable from-45° to +45° and rotates 360° around table center and column
- Spindle protection cover
- Adjustable drill depth stop with scale for accurate drill depth control
Included in delivery: automatic chuck 3-16mm, B16
Any questions? Need assistance? Call our helpline on 01603 756128
Product Details
Motor Data:
Motor power s1: 600W
Voltage: 230V
Motor power s6: 900W
Measurements:
Table size: 250mm×250mm
Outreach: 170mm
Max. height: 1060mm
Technical Specification:
Max. drilling performance: 16mm
Base: 270mm×450mm
Spindle stroke: 80mm
Distance spindle-base: 695mm
Max. distance spindle-table: 495mm
Column diameter: 70mm
Drilling spindle collet: MK2 / MT2
Drilling spindle speed (min-1): (12) 180-2740
Weight:
Net weight: 50kg
Gross weight: 52kg
