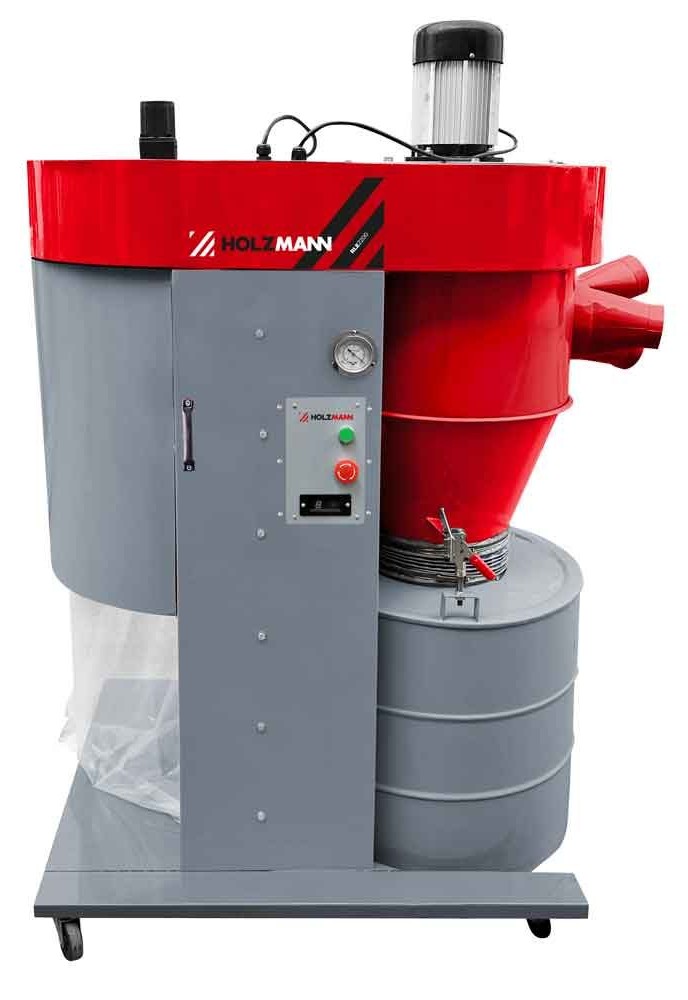

Holzmann – RLE2200 Cyclone Dust Collector
View LargerSKU: RLE2200
£1,837.99 inc VAT/£1,531.66 ex VAT
The HOLZMANN RLE2200_400V cyclon dust collector with remote control,static vacuum pressure gauge cyclone separator and filter cartridge is the ideal dust colletor system for your woodworking machines.
Any questions? Need assistance? Call our helpline on 01603 756128
Product Details
- Separation in cyclone separator with filter cartridge
- Inlet adapter for connecting a maximum of 3 woodworking machines
- Remote control to start/stop the dust collector
- Incl. transport device (wheels)
- Machine running time display
- Automatic filter cartridge cleaning after the dust collector has been switched off to ensure consistent dust collector performance (incl. collection filter bag).
- Collecting container with wheels and sight glass for checking the filling level of the collected wood chips/dust
Motor Data:
Motor power s1: 2200W
Voltage: 400 V / 50 Hz
Measurements:
Dust collector port: 1x Ø200mm | 3 x Ø100mm
Total dimensions: 1320mm x 900mm x 1840mm
Dust Collectors:
suction performance: 2800m³/h
Fan wheel diameter: Ø 365mm
Hypotension: 2220 Pa
Chip bag capacity: 151 l | 80 l
Volume Level and Vibration:
Sound power level: 87 dB(A)
Sound pressure level: 74 dB(A)
Weight:
Gross weight: 170kg
Net weight: 136kg
