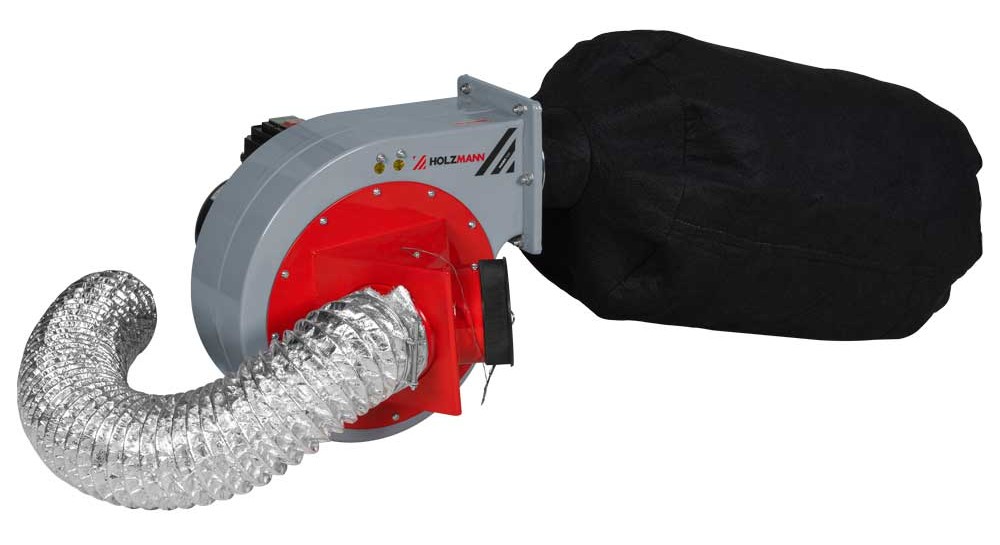

Holzmann MABS700 Portable Extraction System For Metal
View LargerSKU: MABS700
£279.99 inc VAT/£233.33 ex VAT
The HOLZMANN MABS700 dust collector – the ideal accessory for your metal sanding machine! Equipped with two flexible connection hoses, it ensures efficient dust and chip extraction directly at the place of use. Thanks to the functional motor bracket, the MABS700 can be easily mounted on machines such as the MSM75_3In1 – for clean, safe and powerful work.
Any questions? Need assistance? Call our helpline on 01603 756128
Product Details
- chip bag Ø 350 x 500 mm
- 2 connection hoses Ø100mm L: ~1m
- 1 x cover cap
- 850 m³/h capacity
motor data
motor power s1 in W 750
voltage 230 V / 50 Hz
measurements
dust collector port in mm 2 x Ø 100
total dimensions in mm 755 x 455 x 533
dust collectors
suction performance in m³/h 850
chip bag diameter in mm Ø350
chip bag length in mm 500
fan wheel diameter in mm Ø 230
hypotension in Pa 910
volume level and vibration
sound power level in dB(A) 87
sound pressure level in dB(A) 75
weight
gross weight in kg 15
net weight in kg 13.50
