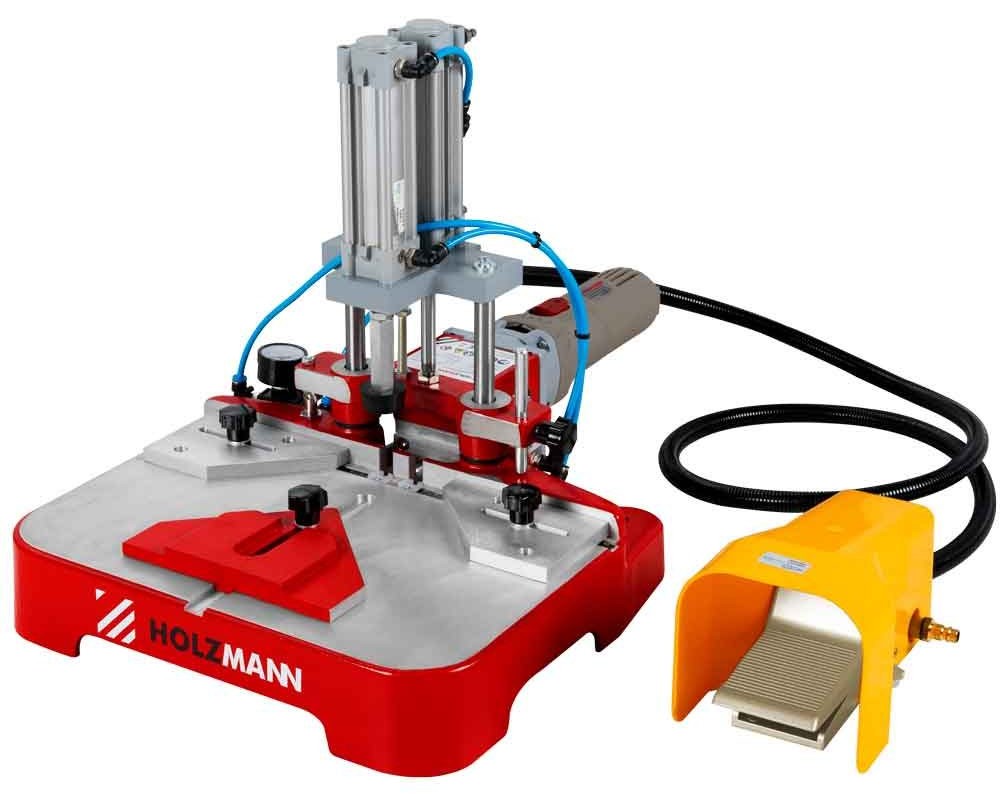

Holzmann KNF2PNEU – Pneumatic Double Blade Jointing Machine
View LargerSKU: KNF2PNEU
£1,148.99 inc VAT/£957.49 ex VAT
The HOLZMANN KNF2PNEU_230V pneumatic double blade wooden coupling machine with two milling spindle is ideal for producing two keyway joint per working stroke. Picture frames, window frames and many other frame joints can be produced quickly and easily. Milling, insert the matching dovetail joint element and the two machined parts are joined together (no glue required)
Any questions? Need assistance? Call our helpline on 01603 756128
Product Details
- Pneumatic workpiece clamping, activated by foot-pedal
- Two milling spindle
- Max. profile dimension 185 mm
- Adjustable stops for workpiece positioning
Included in delivery: Milling cutter mould W-2, collet Ø6 and Ø8 mm, milling cutter setting gauge
Motor power s1: 600W
Voltage: 230 V / 50 Hz
Appliance class II
Table size: 380mm x 220mm
Total dimensions: 400mm x 680mm x 440mm
Max. workpiece thickness: 100mm
Max. milling performance: 55mm
Milling spindle speed (min-1): 12000 – 27000
Sound pressure level: 92 dB(A)
Gross weight: 18kg
Net weight: 15kg
