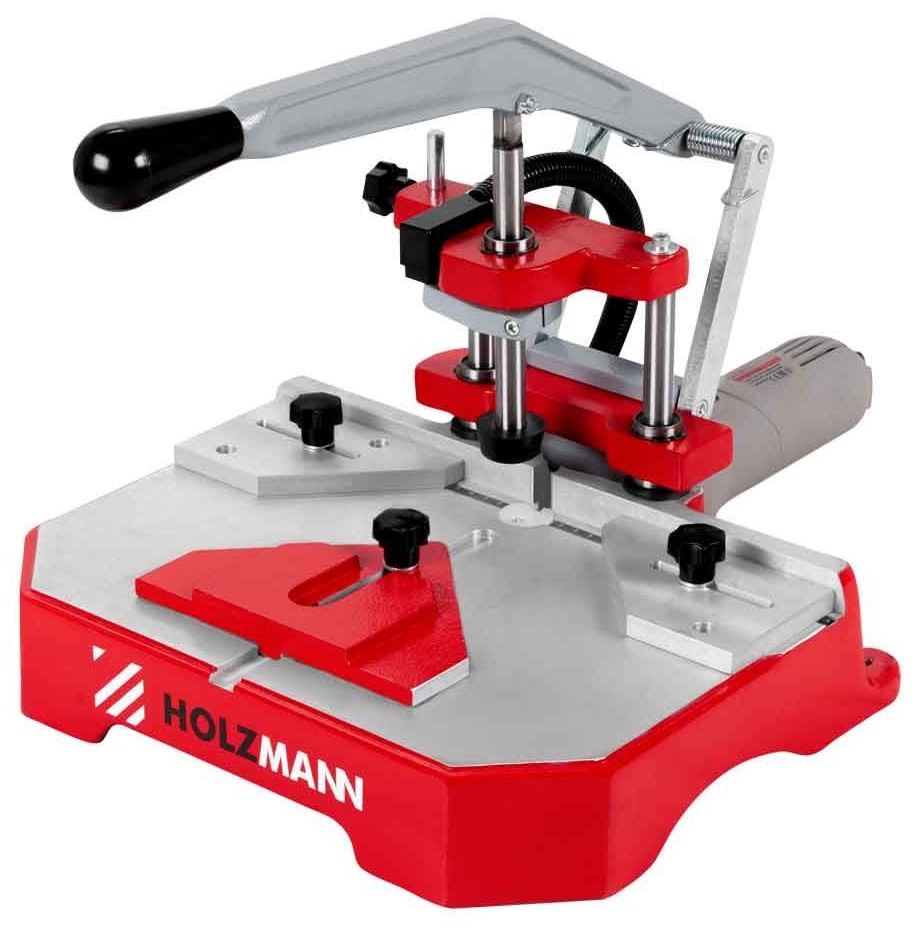

Holzmann KNF1 – Single Blade Wooden Coupling Machine
View LargerSKU: KNF1
£631.99 inc VAT/£526.66 ex VAT
The HOLZMANN KNF1_230V single blade wooden coupling machine with one milling spindle is ideal for producing one keyway joint per working stroke. Picture frames, window frames and many other frame joints can be produced quickly and easily. Milling, insert the matching dovetail joint element and the two machined parts are joined together (no glue required)
Any questions? Need assistance? Call our helpline on 01603 756128
Product Details
- Manual workpiece clamping
- One milling spindle
- Max. profile dimension 185 mm
- Adjustable stops for workpiece positioning
Included in delivery: Milling cutter mould W-2, collet Ø6 and Ø8 mm, milling cutter setting gauge
Motor power s1: 600W
Voltage: 230 V / 50 Hz
Appliance class II
Table size: 380mm x 220mm
Total dimensions: 400mm x 550mm x 370mm
Mmax. workpiece thickness: 95mm
Max. milling performance: 55mm
Milling spindle speed (min-1): 12000 – 27000
Sound pressure level: 88 dB(A)
Gross weight: 14kg
Net weight: 11kg
