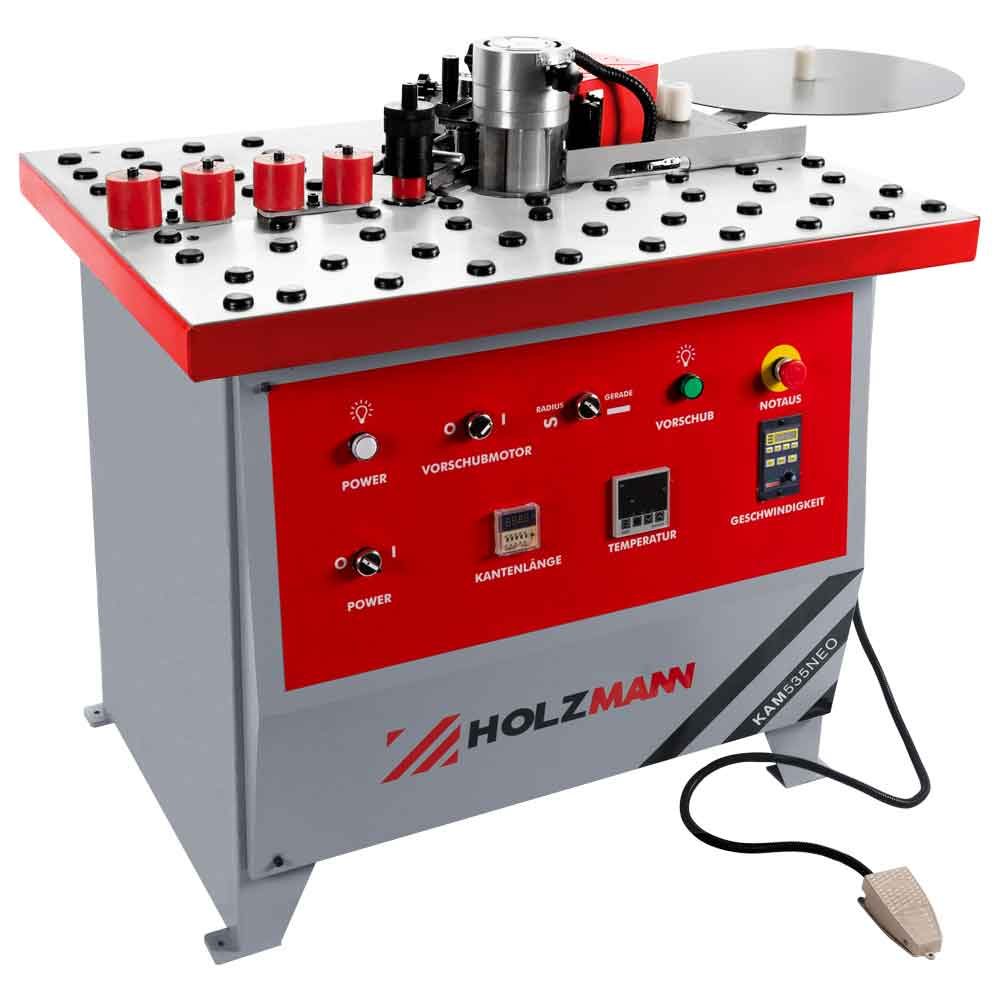

Holzmann – KAM535NEO Edge Banding Machine
View LargerSKU: KAM535NEO
£1,952.99 inc VAT/£1,627.49 ex VAT
- Semi-automatic edge banding machine
- The machine is not only suitable for straight but also specifically for gluing of curved edges
- Direct glue delivery on straight and curved edges
- On both sides – laminate and edge
- Automatic length cut-off
- Gluing temperature electronically adjustable
- Feed speed variable adjustable
- 1750 W heater power 250W feed motor
Any questions? Need assistance? Call our helpline on 01603 756128
Product Details
Motor Data:
Motor power: 250W (+1750W)
Voltage: 400 V / 3 / 50 Hz
Feed speed: 0-15 m/min
Measurements:
Table size: 1000mm x 700mm
Table height: 850mm
Workpiece Measurements:
Min. workpiece thickness 10mm
Max. workpiece thickness: 50mm
Edge Banding:
Edge width: 13mm – 54mm
Edge thickness: 0.3mm – 3mm
Required air pressure: 4-5 bar
Working temperature: 170 °C
Min. curve radius: 20mm
Volume Level and Vibration:
Sound pressure level: < 70 dB(A)
Weight:
Gross weight: 161kg
Net weight: 133kg
