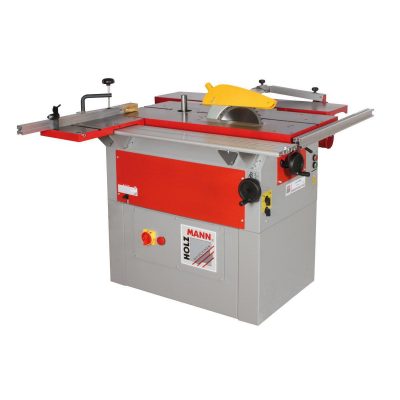

Holzmann – K5260L 5 Operation Universal Woodworker 230v

SKU: K5260L

£3,450.99 inc VAT/£2,875.83 ex VAT

FREE delivery to UK mainland
  • Compact universal combination machine with small foot print and optimal price/performance ratio best choice for woodworking enthusiasts with constrained
  • Workshop capacity
  • Saw-blade can be tilted with handwheel from 90 – 45°
  • Large and precision-ground cast iron table with mitre gauge (+-45°) guided in T-slot
  • Fast and convenient transformation between the operation modes with turn switch
  • Each machine unit powered by an independent motor delivering long-lasting performance at duty
  • Solid 3-knife cutter block with pre-mounted HSS plane knives
  • Engine power circular saw S1 (100%) / S6    2,2 kW / 3,1 kW
  • Engine power spindle shaper S1 (100%) / S6    1.5 kW / 2.1 kW
  • Engine power planer S1 (100%) / S6    1,5 kW / 2,1 kW

3-4 WEEK LEAD TIME ON THIS ITEM

Any questions? Need assistance? Call our helpline on 01603 756128

Product Details

Planing
  • Infeed table length in mm: 1090
  • Fence tilt: 90-45°
  • Planer fence in mm: 715×130
  • Max. thicknessing cutting depth in mm: 5
Motor data
  • Motor power s1 in W: 2200 / 1500 / 1500
  • Motor power s6 in W: 3100 / 2100 / 2100
  • Feed speed: 8
  • Voltage: 230V
Measurements
  • Sliding table in mm: 250×400
  • Suction port in mm: 100
  • Table height in mm: 840
  • Table size in mm: 980×470
Cutting performance
  • Max. cutting height 90° in mm: 78
  • Max. cutting height 45° in mm: 60
  • Max. cutting width at parallel fence in mm: 510
Thicknessing
  • Thicknessing height in mm: 5-195
General planing
  • Cutter knives amount: 3
  • Shaft speed in min-1: 4500
  • Shaft diameter in mm: 75
Technical specification
  • Max. tool diameter above table: 160
  • Mitre fence in mm: 350×125
  • Table opening in mm: 145
  • Max. tool diameter below table in mm: 140
  • Max. clamping height in mm: 80
  • Spindle stroke in mm: 100
  • Milling spindle speed in min-1: 6500
  • Milling spindle diameter in mm: 30
Circular saws
  • Sawblade in mm: 254
  • Sawblade speed in min-1: 4750
