Holzmann – HOB410ECOSMW2 410x225mm Planer Thicknesser

SKU: HOB410ECOSMW2

£3,324.99 inc VAT/£2,770.83 ex VAT

FREE delivery to UK mainland

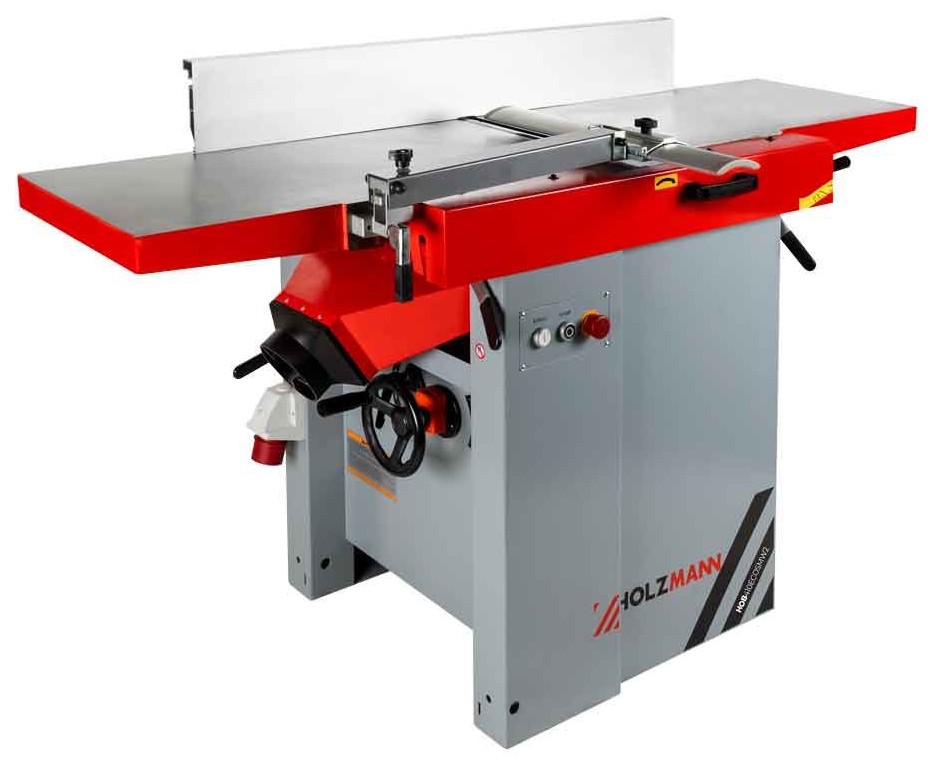

The HOLZMANN HOB410ECOSMW2_400V combinded planer-thicknesser with 410mm cutter-head length, planing function and optionally with extension table should be part of our woodworking workshop. Very easy to change from planer to thicknesser or thicknesser to planer mode.

Any questions? Need assistance? Call our helpline on 01603 756128

Product Details

  • Smooth-running central height adjustment of the thicknessing table incl. counter
  • Spiral cutterblock with cutter inserts (2 grooves, 22 each) assembled
  • Spiral-toothed feed roller
  • Swivelling planer fence
  • Easy to change over (the entire planer table can be folded up)

Included in delivery: planing fence, cutter inserts (15x15x2.5 (30°)) assembled (44 pieces) + 5 spare-parts, assembly tool, sliding block
Optional: Extension table (for thicknesser table), lubricant, dust collectors - please contact us for details



Planing:
Planing table size: 1660mm x 410mm
Thicknesser table height: 850mm
Max. thicknessing cutting depth: 4mm
Planer fence: 1100mm x 150mm
Fence tilt: 0-45°

Motor Data:
Motor power s1: 4000W
Voltage: 400V / 3 / 50 Hz
Feed speed: 7 m /min

Measurements:
Dust collector port: Ø 120mm
Total dimensions: 1670mm x 680mm x 1000mm

Thicknessing:
Table size: 650mm x 407mm
Cutting depth: 3mm
Thicknessing height: 225mm

General Planing:
Shaft diameter: 70mm
Shaft speed (min-1): 5500

Volume Level and Vibration:
Sound power level: 104 dB(A)
Sound pressure level: 86 dB(A)

Weight:
Gross weight: 353kg
Net weight: 295kg
