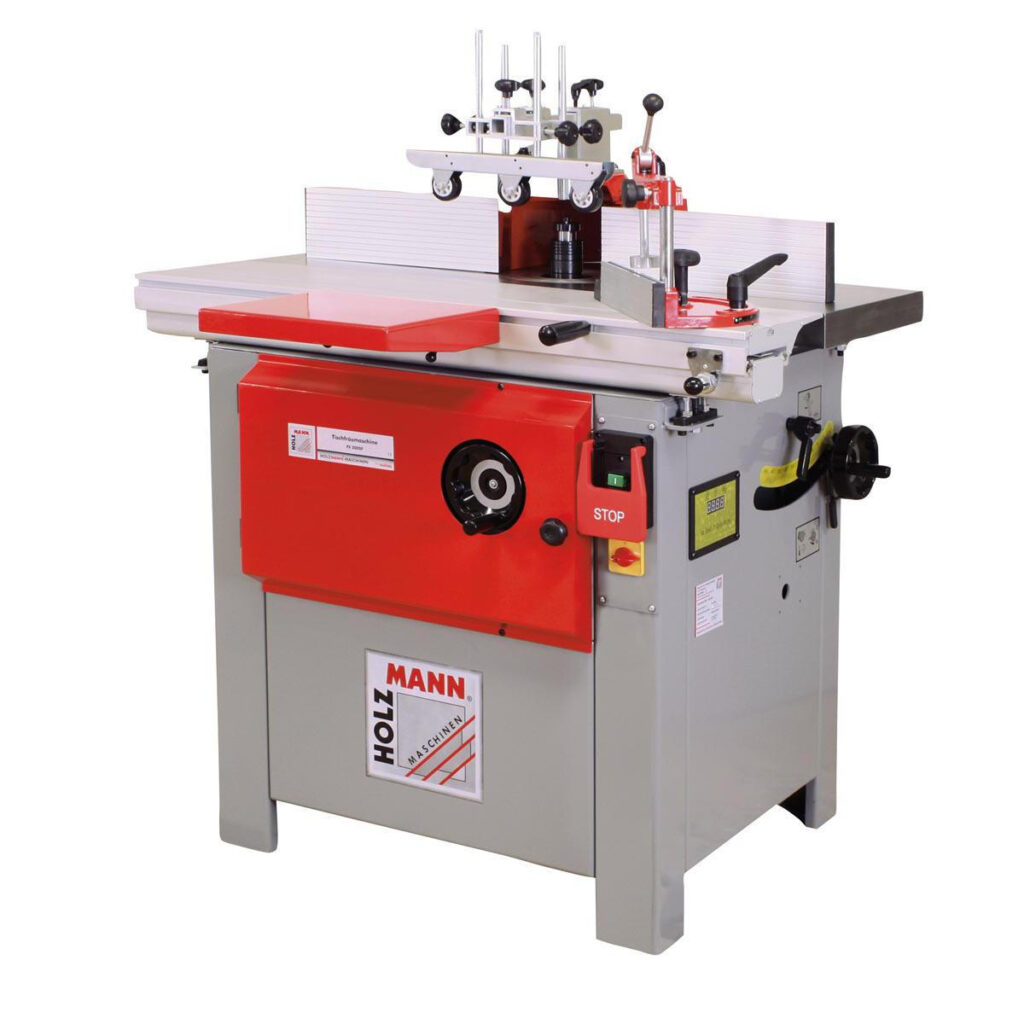

Holzmann – FS200SF Spindle Shaper 230v

SKU: FS200SF-230V

£2,960.99 inc VAT/£2,467.49 ex VAT

FREE delivery to UK mainland
  • Massive and torsion-resistant, ground grey cast iron table
  • Smoothly running aluminium sliding table (250mm width) with extension table (+ 250mm width)
  • 4 spindle speeds, maintenance cover positioned at frontside of the machine for convenient speed change.
  • Spindle tilts backwards – up to 45°
  • HQ shaper fence with guiding-rollers ensures an exact workpiece feeding.
  • Electric spindle speed indication via LCD
  • Spindle-lock lever positioned at machine side for fast and convenient cutter head change.
  • Dust extraction plug diameter: 100mm

3-4 WEEK LEAD TIME ON THIS ITEM

Any questions? Need assistance? Call our helpline on 01603 756128

Product Details

Motor data
  • Motor power s6 in W: 3750
  • Motor power s1 in W: 2800
  • Voltage: 230V
Measurements
  • Table size in mm: 1000×360
  • Table height in mm: 900
  • Suction port in mm: 100
  • Sliding table in mm: 1000×250
Technical specification
  • Milling spindle diameter in mm: 30
  • Milling spindle speed in min-1: 1800/3000/6000/9000
  • Spindle stroke in mm: 100
  • Max. clamping height in mm: 100
  • Milling spindle swivel: 0° +45°
  • Max. tool diameter below table in mm: 180
  • Table opening in mm: 200
  • Mitre fence in mm: 360×120
  • Max. tool diameter above table: 180
