Holzmann – FKS305V16TOP 305mm Panel Saw Package
View LargerSKU: FKS305V16TOP
£4,682.99 inc VAT/£3,902.49 ex VAT

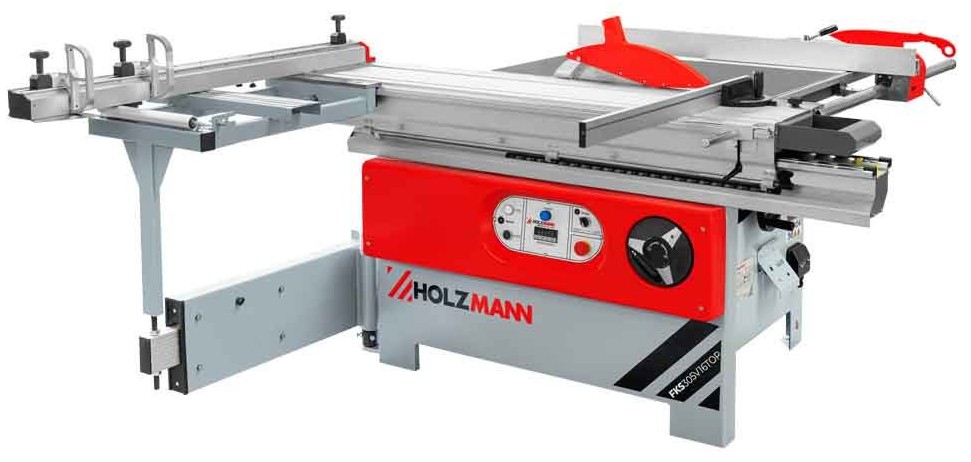

The HOLZMANN panel saw FKS305V16TOP_400 with 1.6 m sliding table, scoring unit (height and side adjustable), table extension, main saw blade with height and angle adjustment, outrigger table for precise cuts in a compact format.
Any questions? Need assistance? Call our helpline on 01603 756128
Product Details
- Solid design.
- With precise aluminium sliding table and extension arm ideal for processing workpieces and cutting panels to size
- Cast iron work table (935 x 610 mm) incl. table widening (900 x 500 mm) and table extension (600 x 520 mm) of solid steel construction
- Outrigger table 900 x 500 mm + cross cut fence 1200 – 2280 mm
- Including scorer with own motor and manual height and side adjustment
- Manually tiltable saw blade 0°-45° (via angle indicator)
- Manual height adjustment of the main saw blade and scorer
Included in delivery: main saw blade (TCT: Ø300 x 30 x 3,2 mm T(72)) and scoring saw blade (Ø120 x 20 x 3-3,8 T=24)
Motor power s1: 5500W
400 V / 50 Hz
Table height: 890mm
Sliding table: 1600mm x 370mm
Outrigger table: 900mm x 500mm
Dust collector port: Ø100mm / (Ø50mm)
Total dimensions: 3100mm x 1800mm x 890mm
Max. cutting width at parallel fence: 1250mm
Sawblade : 250mm-315mm (/30mm)
Sawblade speed (min-1) (I): 4000 (II): 6000
Scoring sawblade: Ø120mm x 20mm
Scoring unit motor power: 750W
Scoring unit speed (min-1): 8000
Sawblade swivel: 0-45°
Sound power level: 90dB(A)
Sound pressure level: 88.2dB(A)
Gross weight: 570kg
Net weight: 490kg
