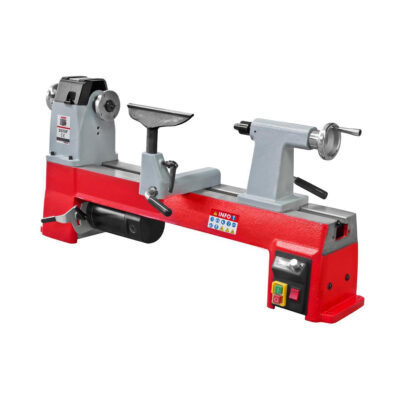

Holzmann – D510F Wood Turning Lathe 230v
View LargerSKU: D510F
£861.99 inc VAT/£718.33 ex VAT
- Precision tool for professionals, grey cast iron version
- Variable speed control with mini frequency converter, therefore high torque at low speeds
- High standard of spindle concentricity
- Single hand operation of the tailstock and tool rest with cam lock mechanism
- Metal handles are treated with chrome polish
- Spindle fixable all 15 degrees
- Left-right-rotation
- Optional: bed extensions (644 mm) D 510FBVL
- LCD-speedometer
Any questions? Need assistance? Call our helpline on 01603 756128
Product Details
Motor data
- Motor power s1 in W: 735
- Voltage: 230V / 50 Hz
Measurements
- Total dimensions in mm: 1130(960)x195x445
Turning machines
- Spindle bore in mm: 10
- Spindle nose mount: MK2 / MT2
- Head stock spindle: M33 DIN800
- Lathe spindle speed in min-1: (1) 250-720(2) 550-1650(3) 1300-3850
- Tailstock sleeve travel: 52
- Distance between centres in mm: 510
- Centre height in mm: 160
volume level and vibration
- Sound power level in dB(A): 91,5dB(A)
- Sound pressure level in dB(A): 78,5dB(A)
