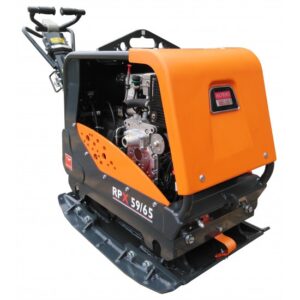

Altrad Belle – RPX 59/65-P Honda Engine – Plate Compactor
SKU: 161.9.214
£7,514.99 inc VAT/£6,262.49 ex VAT
Heavy duty range of reversible plate compactors built to withstand the harshest site conditions. With improved baseplate design for excellent gradability & increased travel speeds and a higher compaction force for shorter usage times and deeper compaction. Complete with Hourmeter as standard on Diesel Electric Start & Petrol models and Extension Width options available for more versatility. The perfect solution for the rental market. Available with Honda petrol, Hatz diesel or Hatz diesel electric engine options.
Any questions? Need assistance? Call our helpline on 01603 756128
Product Details
Advantages
- Robust design for long-life and use in the harshest site conditions.
- Petrol & Diesel models to suit all kind of applications.
- Electric start with key ignition & LED warning lamps, eliminates need for operator training associated with manual starting (Hatz models only)
- Control Handle & Additional Fixed Handle with strong locking:- - More positive handling & control. - Reduces shock loading on control handles.
- Angled baseplate for excellent gradability and travel speeds.
- Low HAV handle, safe for operators to use for long periods.
- High Compaction force for fast work and deepcompaction.
- Handle mounted throttle, perfect for the operator.
- High performance battery (Hatz Electric Start only).
- Cyclone Air Filter as standard on Honda GX390 model.
- Hourmeter as standard on Petrol and Diesel Electric models.
- Specifically designed for hire and rental markets.
- Extension Plates available to give 650mm or 750mm width base plates.
| Ref | Model | Engine Power (hp/kW) |
Engine RPM |
Plate Size WxL (mm) |
Plate Contact Area (mm) |
Static Pressure (kg/m2) |
Centrifugal Force (kN) |
Frequency (Hz) |
Max Gradient (°) |
Travel Speed (m/min) |
Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 161.9.214 | RPX 59/65 | Honda GX390 Petrol - 9.4 / 7.0 |
3000 | 650 x 945 | 650 x 460 | 1241 | 59 | 70 | 20 | 28 | 360 |
| 161.9.212 | RPX 59/65 | Hatz 1D50 Diesel - 10.7 / 7.9 |
3000 | 650 x 945 | 650 x 460 | 1420 | 59 | 70 | 20 | 28 | 412 |
| 161.9.213 | RPX 59/65 | Hatz 1D50 Diesel Electric - 10.7 / 7.9 |
3000 | 650 x 945 | 650 x 460 | 1524 | 59 | 70 | 20 | 28 | 442 |
| 161.9.218 | RPX 59/75 | Honda GX390 Petrol - 9.4 / 7.0 |
3000 | 750 x 945 | 750 x 460 | 1102 | 59 | 70 | 20 | 28 | 375 |
| 161.9.216 | RPX 59/75 | Hatz 1D50 Diesel - 10.7 / 7.9 |
3000 | 750 x 945 | 750 x 460 | 1256 | 59 | 70 | 20 | 28 | 427 |
| 161.9.217 | RPX 59/75 | Hatz 1D50 Diesel Electric - 10.7 / 7.9 |
3000 | 750 x 945 | 750 x 460 | 1344 | 59 | 70 | 20 | 28 | 457 |
