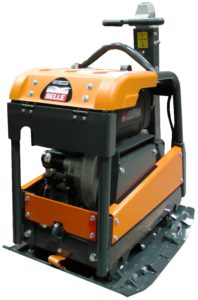

Altrad Belle – RPC 60/80DE Hatz Engine E/S – Plate Compactor
View LargerSKU: 161.9.065
£9,074.99 inc VAT/£7,562.49 ex VAT
Heavy duty range of reversible plate compactors with optimum compaction performance from the 60kN centrifugal force. A powerful diesel engine, makes the RPC 60/80 range an economical alternative to heavy vibratory rollers. The base plate is designed for fast compaction on stone and soil material on large surfaces. Excellent for building foundations and backfill against supporting walls.
Any questions? Need assistance? Call our helpline on 01603 756128
Product Details
- Exceptional centrifugal force 60kN
- Compact and designed with protective side covers to ensure safe passage in deep trenches
- Ideal for large projects
- Total bottom plate width can be extended to 700 mm or 800 mm with quick release extension plates (550 mm base width without extensions)
- Extension plates 2 x 75mm included
- Extension plates 2 x 125mm as available option
- Diesel Hatz 1D81Z or Petrol Honda GX390 engine options.
- RPC 60/80 is available with diesel electric start (option)
- Reliable in operations with excellent compaction features
- Easy to work and manoeuvre, developed to reduce operator fatigue
- Ergonomic operating handle
- User and service friendly, components are easily accessible, many standard components
- Large centrally placed lifting hook
- Foldable handle locking into frame for easy transport and storage
| Model |
Part
Number
|
Engine Power
(Hp) - (kw)
|
Static Pressure
(kg/m2)
|
Max.
Gradient (°)
|
Centrifugal
Force (kN)
|
Frequency
(Hz)
|
Max. Travel
Speed (m/min)
|
Dimensions
W x L x H (mm)
|
Weight
(Kg)
|
| RPC 60/80 - Honda GX390 Petrol | 161.9.142 | 11.8 - 8.7 | 1220 | 20 | 60 | 70 | 26 | 700 x 1509 x 1171 | 380 |
| RPC 60/80D - Hatz 1D81Z Diesel | 161.9.064 | 13.2 - 9.7 | 1773 | 20 | 60 | 70 | 25.5 | 700 x 1509 x 1171 | 475 |
| RPC 60/80DE - Hatz 1D81Z Diesel e/s | 161.9.065 | 13.2 - 9.7 | 1919 | 20 | 60 | 70 | 25.5 | 700 x 1509 x 1171 | 502 |
Downloads
RPC 60 Spec. Sheet
