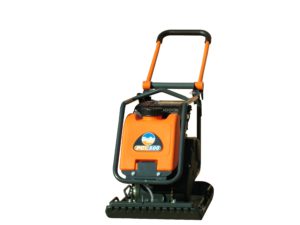

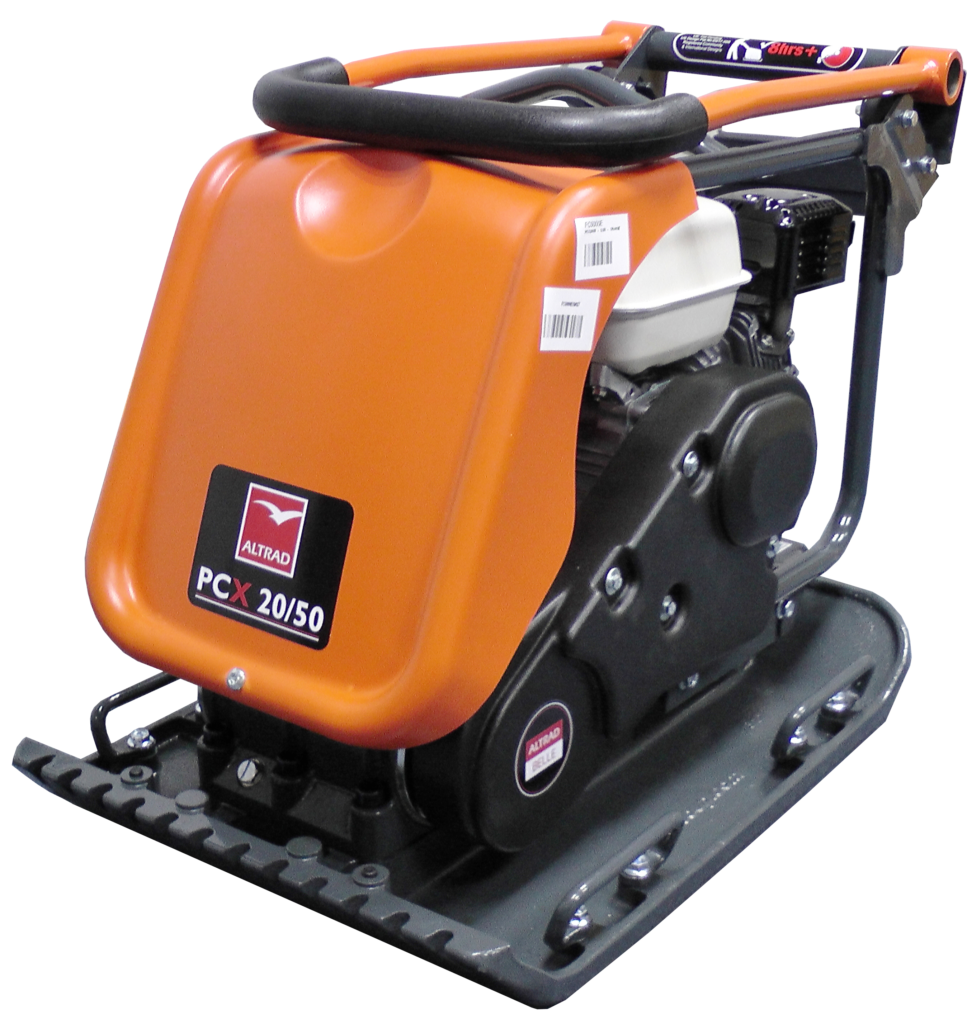

Altrad Belle PCX 20/50 Honda Engine Plate Compactor

Product Details

Advantages

• Compaction all-rounder for soils, asphalt and pavements, a plate with unlimited possibilities.
• Honda Engine Plate Compactor
• The optimum vibratory plate for finishing or patching a surface.
• Highest degree of operator comfort: patented vibration neutralization of the operating handle.
• Wear and fracture resistant cast base plate, even during continuous load applications, manufactured out of extremely resistant cast iron (GJS-700).
• The sturdy protective frame makes this plate resistant to rough treatment or mechanical shocks.
• Powered by Honda.
• Paving pad available as an accessory.
• Used for soil compaction on new developments, repairs and maintenance jobs with large aggregates, cohesive material or moist content.
• This plate is a hard hitting but user friendly machine in the heavy weight class.
• The PCX20/50 has outstanding compaction features and is the heaviest forward plate compactor in the range.


  Ref	Model	Engine Power (hp/kW)	Static Pressure (kg/m2)	Centrifugal Force (kN)	Travel Speed (m/min)	Vibration (m/sec2)	Dimensions (W x L x H)	Weight (kg)
  FC4500E	PCX 20/45 HondaGX160 Petrol	4.9 / 3.6	463	20	26	3.5	450 x 1167 x 987	91
  FC4515E	PCX 20/45 Hatz1B20 Diesel	4.6 - 3.4	585	20	25	2.64	450 x 1167 x 987	115
  FC5000E	PCX 20/50 HondaGX160 Petrol	4.9 / 3.6	442	20	25	3.5	500 x 1167 x 987	97
  FC5015E	PCX 20/50 Hatz1B20 Diesel	4.6 - 3.4	547	20	24	2.45	500 x 1167 x 987	120

PLEASE NOTE, DELIVERY WILL REQUIRE ASSISTANCE TO UNLOAD MACHINE FROM VEHICLE DUE TO WEIGHT.

Downloads

PCX 20/45 & PCX 20/50 Spec. Sheet
