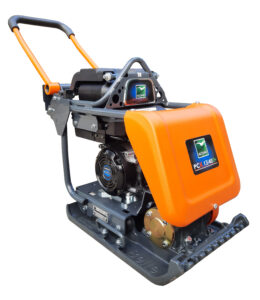

Altrad Belle – PCX 13/40E Honda Motor – Battery Plate Compactor

SKU: FC4050E+OPP/108/DIO+OPP/109/DIO+OPP/110/DIO+OPP/111/DIO+OPP/112/FIO

£4,399.99 inc VAT/£3,666.66 ex VAT

FREE delivery to UK mainland

Heavyweight, professional combination compaction plate designed with an emission free, Li-ion battery powered motor for all your compaction requirements, indoor usage and poorly ventilated areas. Produces low HAV values and matches the high performance compaction of its petrol powered equivalent, but without the environmental impact.

Comes with battery, charger, battery box, charger box and fixed wheel kit.

Building a Sustainable Future!

PLEASE NOTE, DELIVERY WILL REQUIRE ASSISTANCE TO UNLOAD MACHINE FROM VEHICLE DUE TO WEIGHT.

Any questions? Need assistance? Call our helpline on 01603 756128

Product Details

Advantages

  • Fitted with a robust, highly efficient brushless Honda eGX motor
  • Lithium Ion battery, interchangeable with other Honda eGX powered Altrad Belle products.
  • 40 minute run time, 75 minute charge time.
  • Environmentally friendly, emission free for use indoors & in poorly ventilated areas such as basements and tunnels.
  • Low noise offers increased working hours and usage in noise restricted areas.
  • High performance 13kN vibration unit gives excellent travel speed and compaction force, reducing operating times.
  • Low operating HAV levels, gives more than 8hrs operator trigger time.
  • Foldable mounted guide handle offers superior manoeuvrability and can be lowered to operate under obstacles and close to form work.
  • Reinforced centrifugal clutch ensures longer belt life, and simplified belt adjustment.
  • Single switch operation makes starting the power unit easy. No choke or recoil start.
  • 3-speed selector, allowing slower speeds when working around obstacles.
  • No routine power unit maintenance eliminates servicing or costly downtime due to repairs. no blocked carburettors
  • Robust protective battery cover & steel sub frame. With integrated battery power level viewing window.
  • Lifting points and front lift cage offer easier loading and unloading for operator convenience.
  • Optional, large 9.5 litre water tank is built into the main frame for added protection.
  • The spray bar is fully protected from damage, easily positioned, with integral paving pad clamp points.
  • Angled holes on spray bar allow complete water coverage over the full width preventing any asphalt pick-up on plate bottom.
  • Life lubricated vibration bearings.
  • Block Paving Pad option also available.



Ref Model Motor
Power
(Hp/kW)
Plate Size
W x L
(mm)
Static
Pressure
(kg/m2)
Frequency
(Hz)
Centrifugal
Force
(kN)
Max
Gradient
Travel
Speed
(m/min)
Vibration
(m/sec2)
Motor
RPM
Weight
(kg)
FC4050E PCX 13/40E+ 2.2 / 1.6 400 x 606 560 101 13 20 20 <2.5 3600 / 3000 / 2800 89
