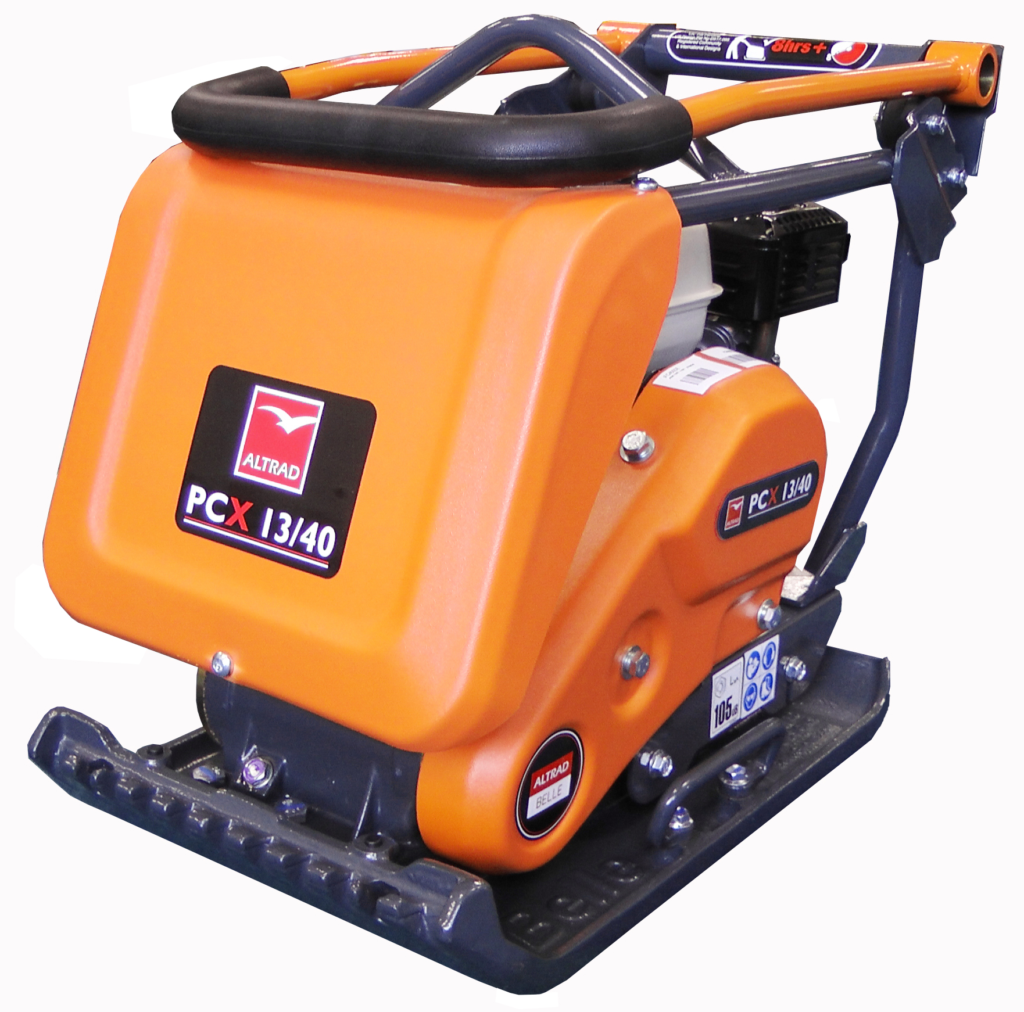

Altrad Belle – PCX 13/40 Honda Engine – Plate Compactor
View Larger
SKU: FC4000E
£1,049.99 inc VAT/£874.99 ex VAT
Heavyweight professional compaction plates with low HAV and very high performance compaction. Designed with a shorter baseplate to offer improved compaction, manoeuvrability and finish.
PLEASE NOTE, DELIVERY WILL REQUIRE ASSISTANCE TO UNLOAD MACHINE FROM VEHICLE DUE TO WEIGHT.
Any questions? Need assistance? Call our helpline on 01603 756128
Product Details
Advantages
- Foldable mounted guide handle offers superior maneuverability and can be lowered to operate under obstacles and close to form work.
- Reinforced centrifugal clutch ensures longer belt life, and simplified belt adjustment.
- Lifting points and front lift cage offer easier loading and unloading for operator convenience.
- Large capacity water tank is built into the protective frame (does not come as standard, this is an additional accessory).
- Angled holes on spray bar allow complete water coverage over the full width preventing any asphalt pick-up on plate bottom.
- The spray bar is fully protected from damage, easily positioned,with integral paving pad clamp points.
- Optional compact wheel kit, easily fitted and removed.
- Life lubricated vibration bearings.
- For FC4020E (PCX 13/40) please contact us
| Ref | Model | Engine Power (hp/kW) | Plate Size WxL (mm) | Static Pressure (kg/m2) | Centrifugal Force (kN) | Travel Speed (m/min) | Vibration (m/sec2) /usage (hrs) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| FC3600E | PCX 12/36 | Honda GX120 | 360 x 606 | 586 | 12.25 | 20 | 4.74 / 2.14 | 81.0 |
| FC4000E | PCX 13/40 | 400 x 606 | 520 | 13 | 3.2 / 4.53 | 83.5 | ||
