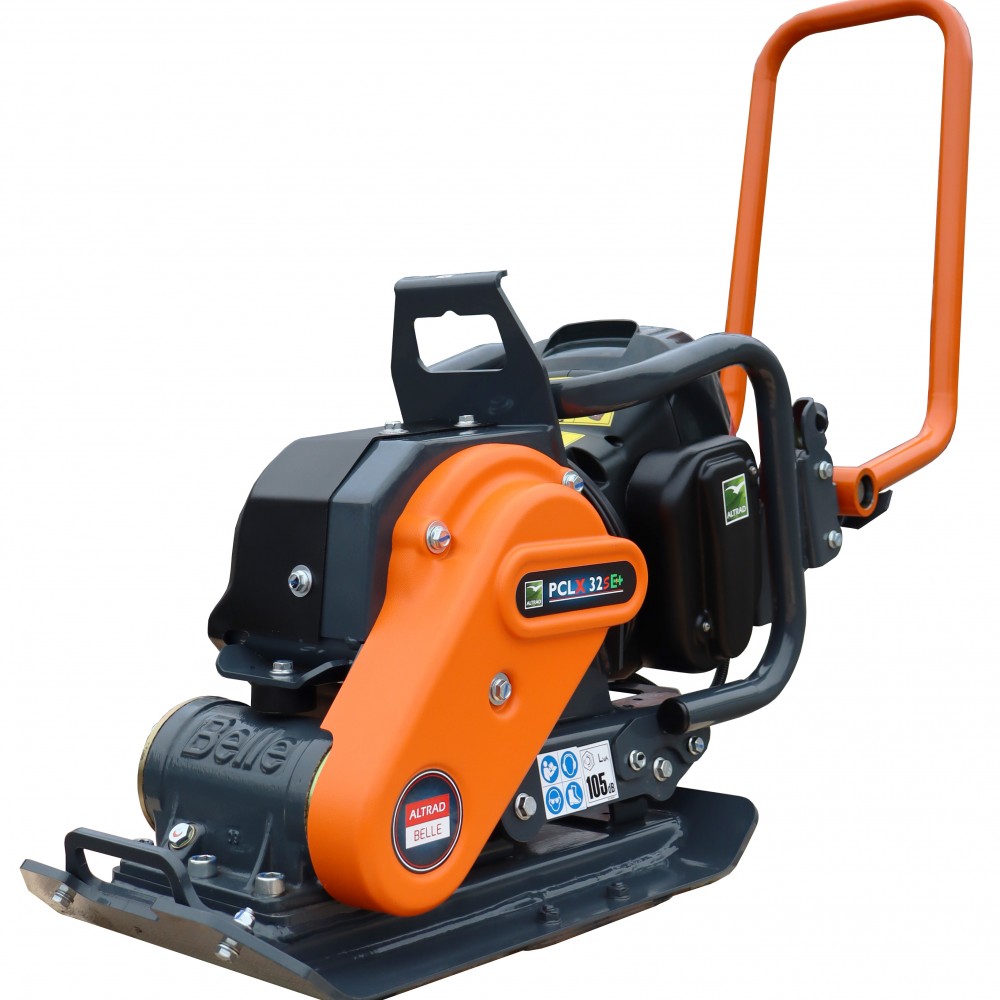

Altrad Belle – PCLX 32SE+ Streetworks Battery Powered Plate Compactor

The PCLX 32S E+ is a high performance battery-powered lightweight plate compactor with over 1400kg/m2 of compaction, exceeding the HAUC requirements for the reinstatement of footpaths.
Designed for professional and rental use, it features an emission free, 82v Li-ion battery-powered motor. It produces low HAV values and matches the high performance compaction of its petrol powered equivalent, but without the environmental impact…Building a Sustainable Future!

PLEASE NOTE, DELIVERY WILL REQUIRE ASSISTANCE TO UNLOAD MACHINE FROM VEHICLE DUE TO WEIGHT.

Any questions? Need assistance? Call our helpline on 01603 756128

Product Details

●  Engineered to be robust and durable for rental and heavy contractor usage.

●  ‘Dual Force’ base plate provides added compaction to meet UK HAUC requirements.

●  The baseplate is made from Strenx™ performance steel with a Hardox® wear plate for added strength and durability.

●  Lightweight yet durable for easy transport. Fits in a standard car boot when the handle is folded.

●  Low Hand-Arm Vibration design for longer safe usage times.

●  High performance 13kN vibration unit gives excellent compaction force and travel speeds.

●  Environmentally friendly, emission free for use indoors & in poorly ventilated areas such as basements and tunnels.

●  Can be operated in environmentally sensitive areas, such as green spaces, nature reserves, national parks, rural railway cuttings and emission controlled urban areas, without any exhaust emissions.

●  No routine power unit maintenance eliminates servicing or costly downtime due to repairs.

●  Avoid problems with modern fuels. No blocked carburettors.

●  Cordless design gives added operational flexibility.

●  Quick release / connect 82v battery with digital power level display.

●  82v batteries are interchangeable with the other products in the

●  Altrad Belle E+ 82v range, for added convenience and flexibility.

●  Baseplate designed for optimised speed and manoeuvrability.

●  Fitted with manual handling points.

●  Easy to operate and control, the baseplate does not dig in when dragged backwards or turned.

●  Optional paving pad for block paving applications available.

●  Customer colour options available.



Model Part Number Motor Power & Type
(Hp / kW)
Static Pressure
(Kg/m2)
Centrifugal Force
(kN)
Frequency
(Hz)
Max. Travel Speed
(m/min)
Dimensions
W x L x H (mm)
Vibration Level
(m/sec2)
Weight
(Kg)
PCLX 32SE+ 'Streetworks' - 82v Battery Powered
c/w 8Ah Battery & Charger
LX3282P8
2.0 / 1.5
Brushless
1800 13 101 20 320 x 1060 x 910 < 2.5 *66
PCLX 32SE+ 'Streetworks' - 82v Battery Powered
Machine Only
LX3282
2.0 / 1.5
Brushless
1800 13 101 20 400 x 1060 x 910 < 2.5 *66

Downloads

Spec. Sheet
